THE PIPER

THE PIPER

LHL-ER2-B-PIPER (BLACK)

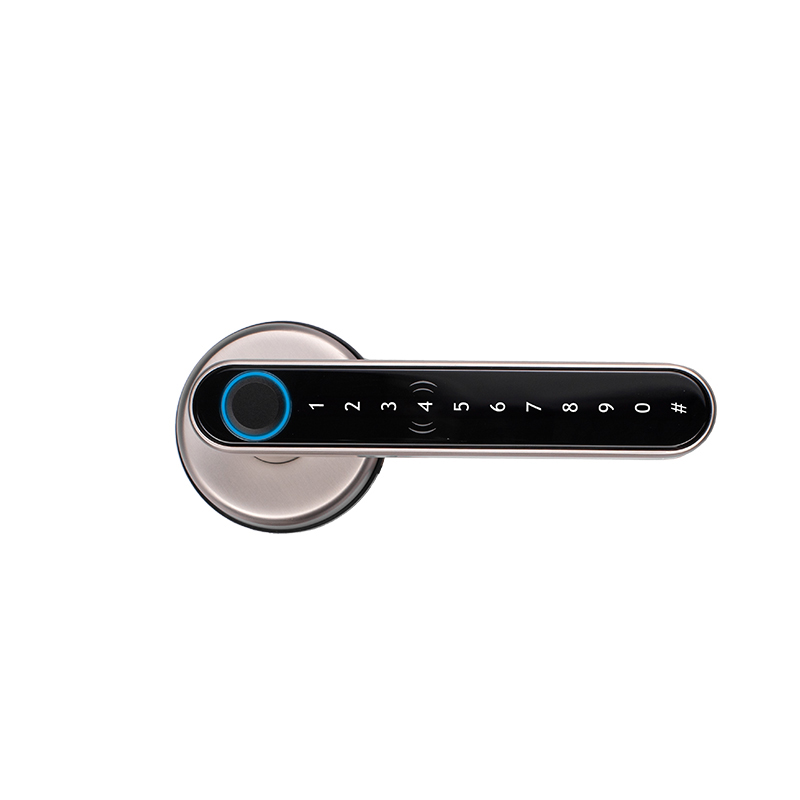

LHL-ER2-S-PIPER (SILVER)

Colours

Unlocking Methods:

Mobile App

Pinpad

RFID Card

Fingerprint

Bluetooth

Key

2 Year Warranty The Lion Head Locks PIPER is a stylish digital door handle for internal residential applications. The PIPER offers multiple unlocking methods - including via the TTLock APP - Bluetooth - Fingerprint - PIN code and RFID Fob/Card. There is also the option of using a manual "track style" key in an emergency. The PIPER is rated IP55 (outside only) - making it suitable for areas with minimal exposure to the elements - however - it is best used on internal residential applications - including home offices. The lock is not supplied with either a latch or lock body - however - it works best with the Lion Head Locks heavy duty - 60mm/70mm adjustable tubular latch. The PIPER is simple to use and is easy to program - using the TTLock APP. The TTLock APP is one of the most popular smart lock applications. It is used in over 200 countries - and it supports more than 30 languages. It is also very secure.

Specifications

Description

Battery	4 x AAA alkaline (not supplied)
Battery Life	Up to 12 months, depending on usage
Colour	Black, Silver
Dimensions	165mm x 65mm
Door Thickness	35mm – 50mm
Fire Rated	NA
In Built Wifi	No
IP Rating	IP55 (exterior assembly only)
Key Override	Track Style Key
Material	Aluminium alloy
Projection	NA
Unlocking Methods	APP, Fingerprint, PIN code, Card, Key
User Capacity	200 Fingerprint, 150 PIN code, 200 Card
Working Humidity	20% – 95% RH
Working Temperature	-25C – 55℃
Suitable For	Apartments, Short Stay Accomodation
Lock Type	Tubular Latch
Compatible Locks	LHL-HD-ADJ-TUB-LATCH, LHL-TUB-LATCH-60MM, LHL-TUB-LATCH-70MM, LHL-TUB-LATCH-127MM
Handle Type	Lever
Product Codes	LHL-ER2-B-PIPER (BLACK), LHL-ER2-S-PIPER (SILVER)
Height (mm)	165
Width (mm)	65
Depth (mm)	0
