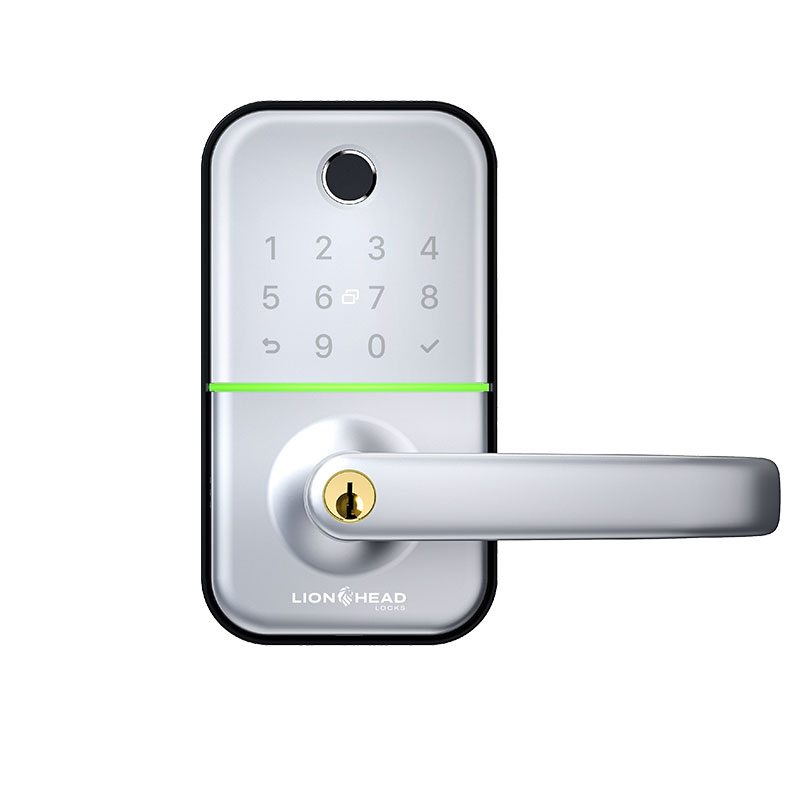

THE CARLISLE

LHL-P3-B-CARLISLE (BLACK)

LHL-P3-S-CARLISLE (SILVER)

Colours

LUXE

Unlocking Methods:

Mobile App

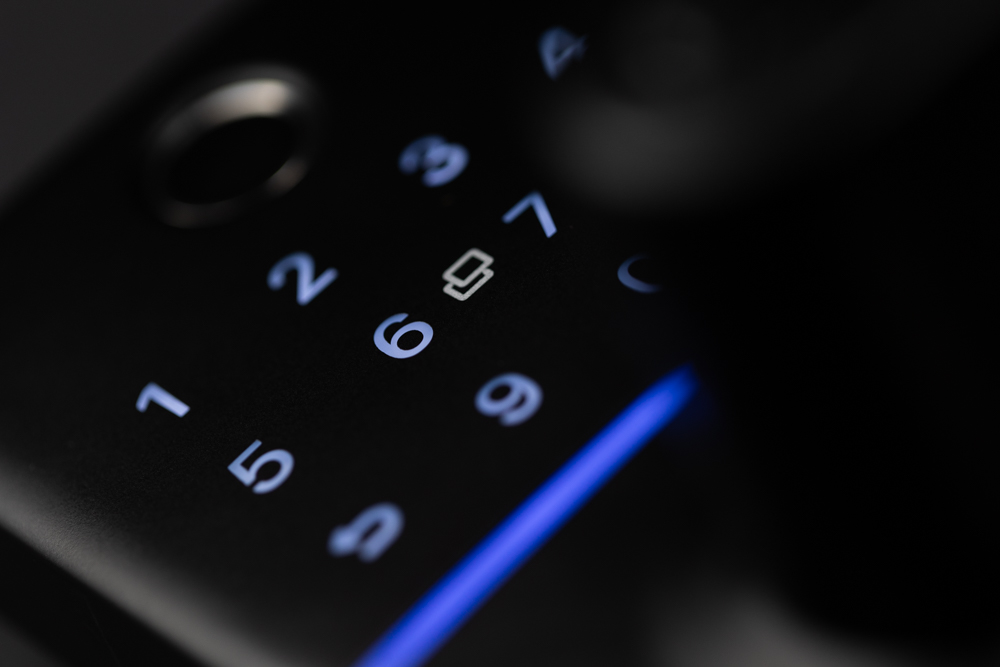

Pinpad

RFID Card

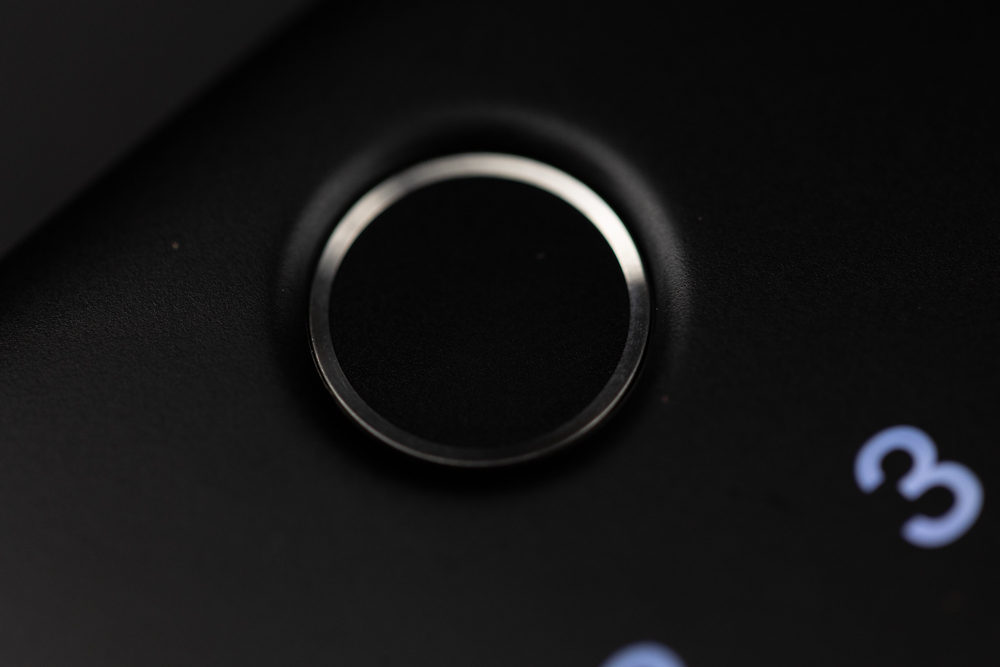

Fingerprint

Bluetooth

Key

2 Year Warranty

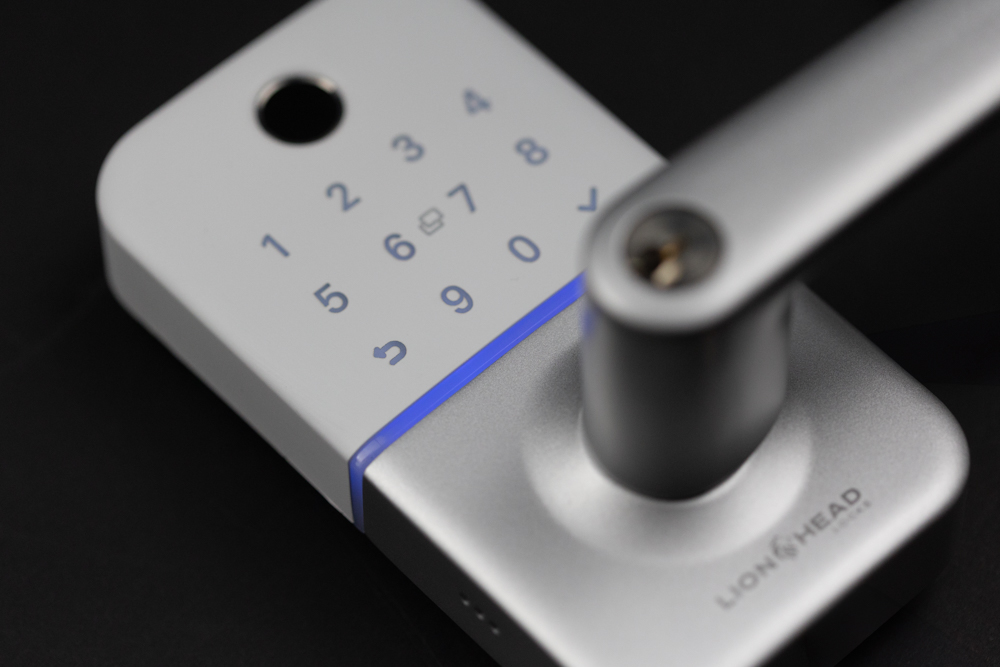

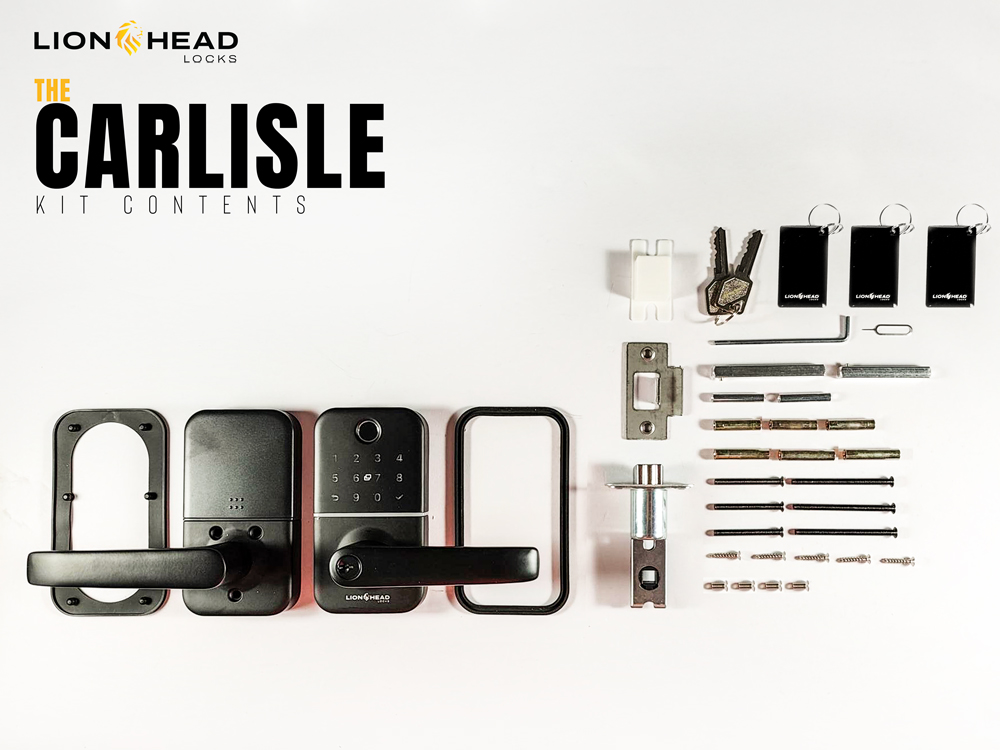

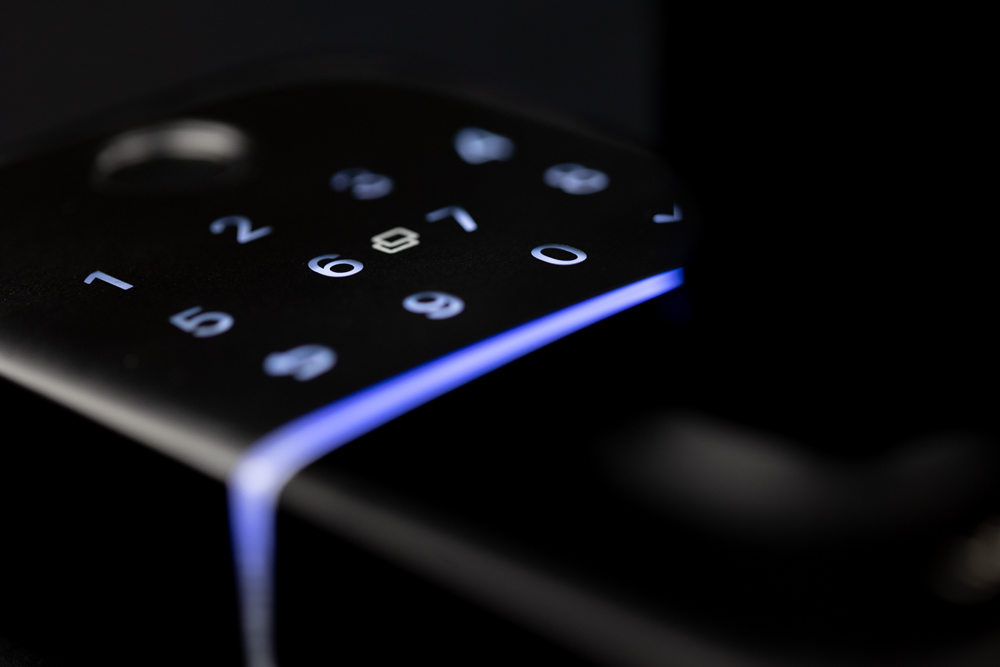

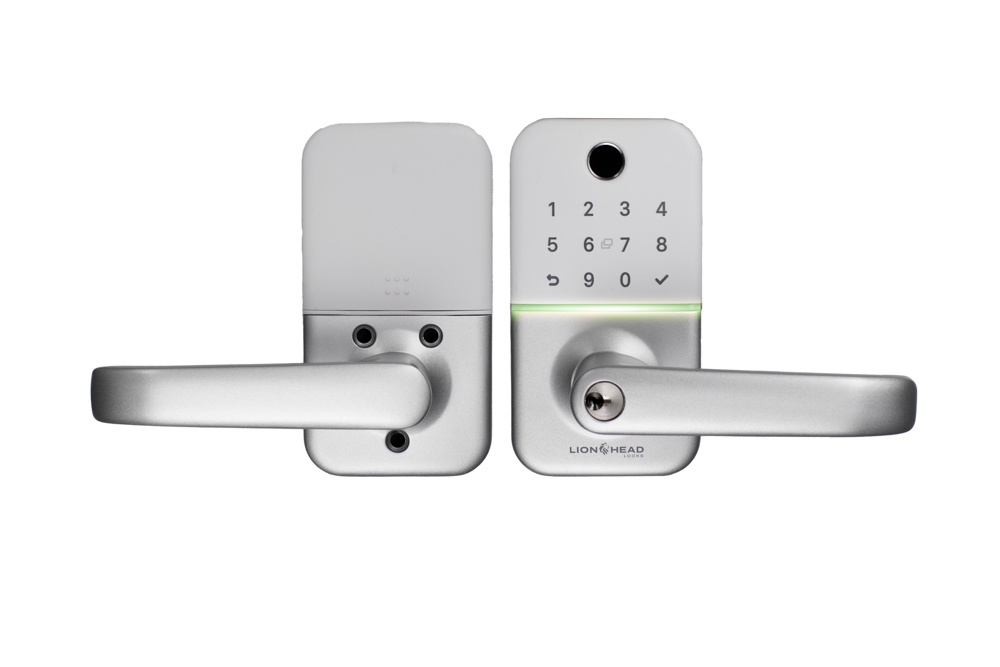

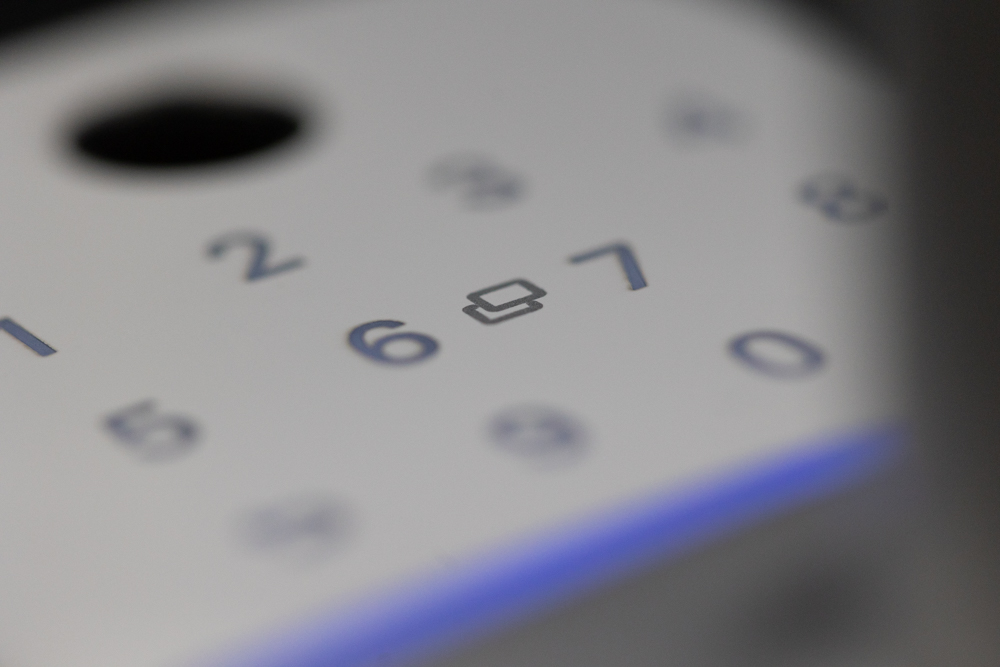

The Lion Head Locks CARLISLE is a compact digital door lock. The CARLISLE offers multiple unlocking methods - including via the TTLock APP - Bluetooth - Fingerprint - PIN code and RFID Fob/Card. There is also the option of using a manual "track style" key in an emergency. The CARLISLE is rated IP55 (outside only) meaning it offers reasonable protection from dust and moisture - but it is not suitable for applications fully exposed to the weather. The lock is supplied with the LHL-HD-ADJ-TUB LATCH 60/70mm adjustable tubular latch - and it will also work with all Lion Head Locks fixed tubular latches. The CARLISLE is the perfect and simple upgrade option for an existing knob set or lever set. The CARLISLE is simple to use and is easy to program - using the TTLock APP. The TTLock APP is one of the most popular smart lock applications. It is used in over 200 countries - and it supports more than 30 languages. It is also very secure.

Contact your local Reseller Datasheet User Manual Talk to an Expert

Specifications

Description

Battery	4 x AAA alkaline (not supplied)
Battery Life	Up to 12 months, depending on usage
Colour	Black, Silver

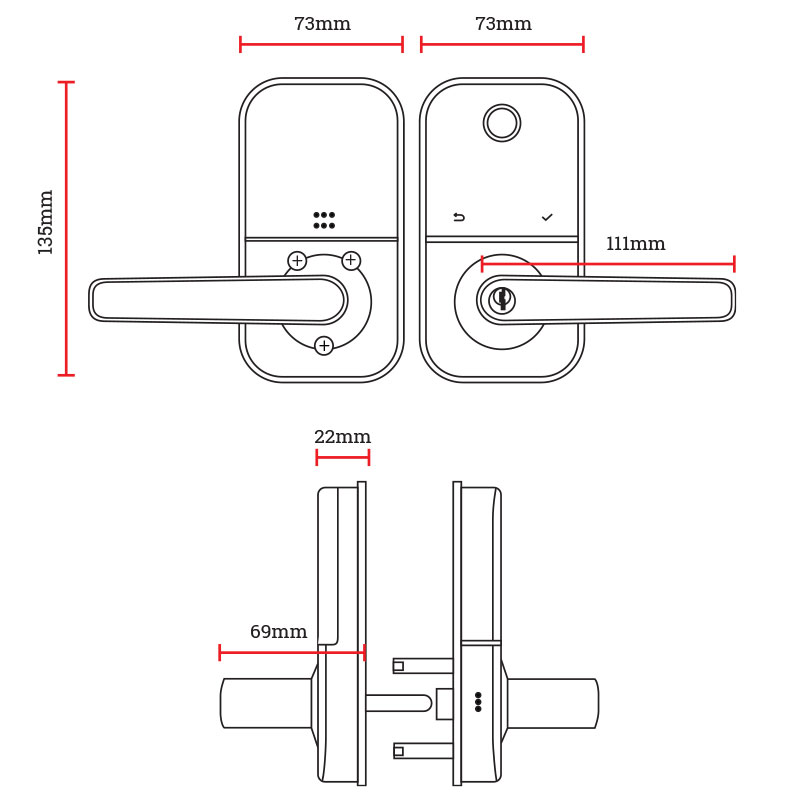

Dimensions	135mm x 73mm x 22mm
Door Thickness	35mm – 65mm
Fire Rated	NA
In Built Wifi	No
IP Rating	IP55 (exterior assembly only)

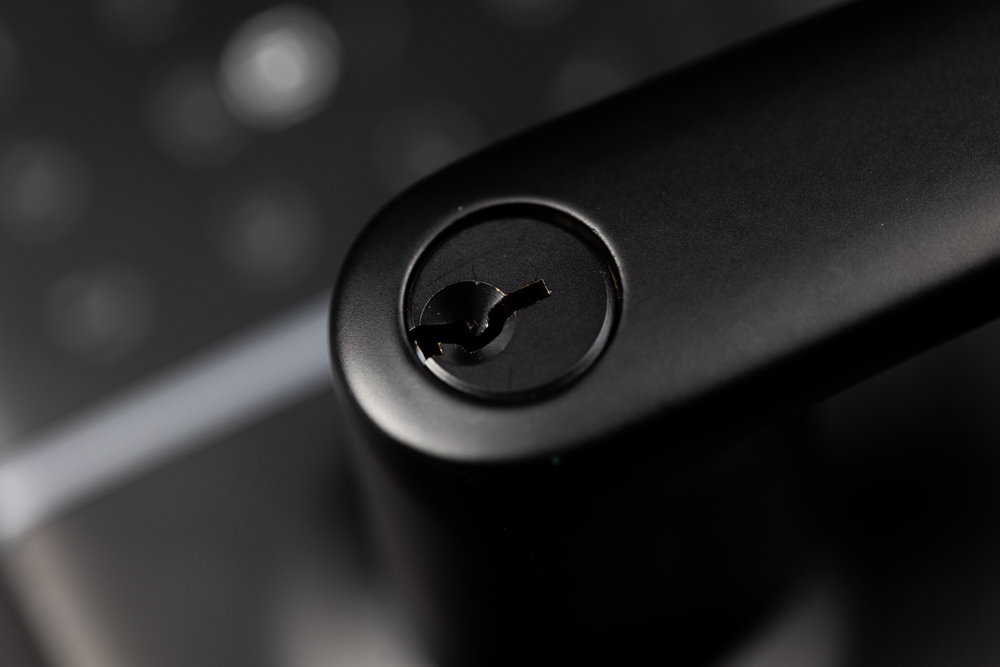

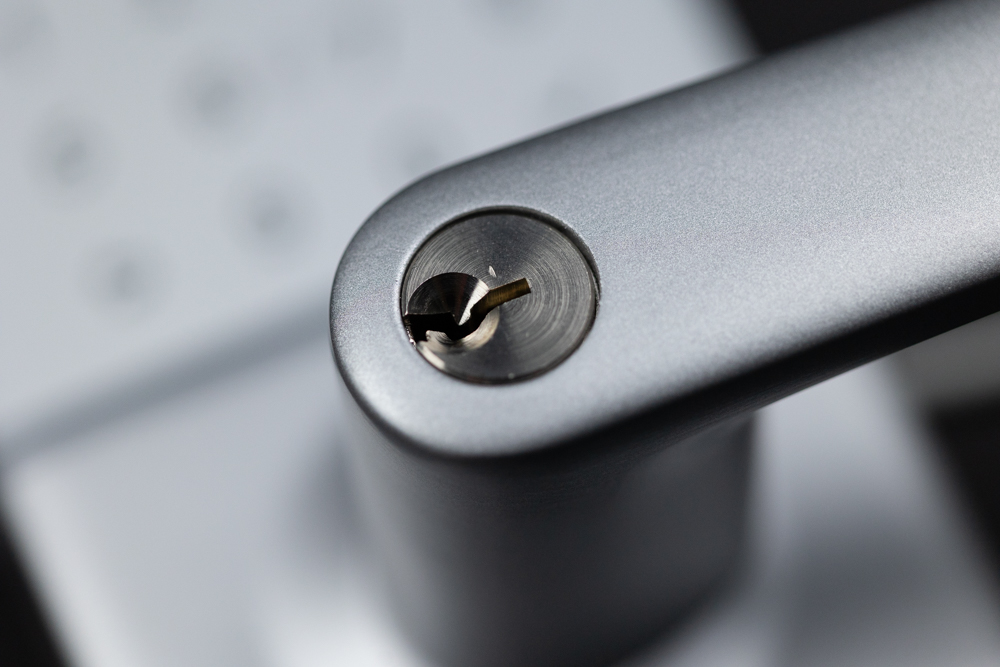

Key Override	5 pin traditional key, LW4/C4 keyway
Material	Aluminium alloy
Projection	NA
Unlocking Methods	APP, Fingerprint, PIN code, Card, Key

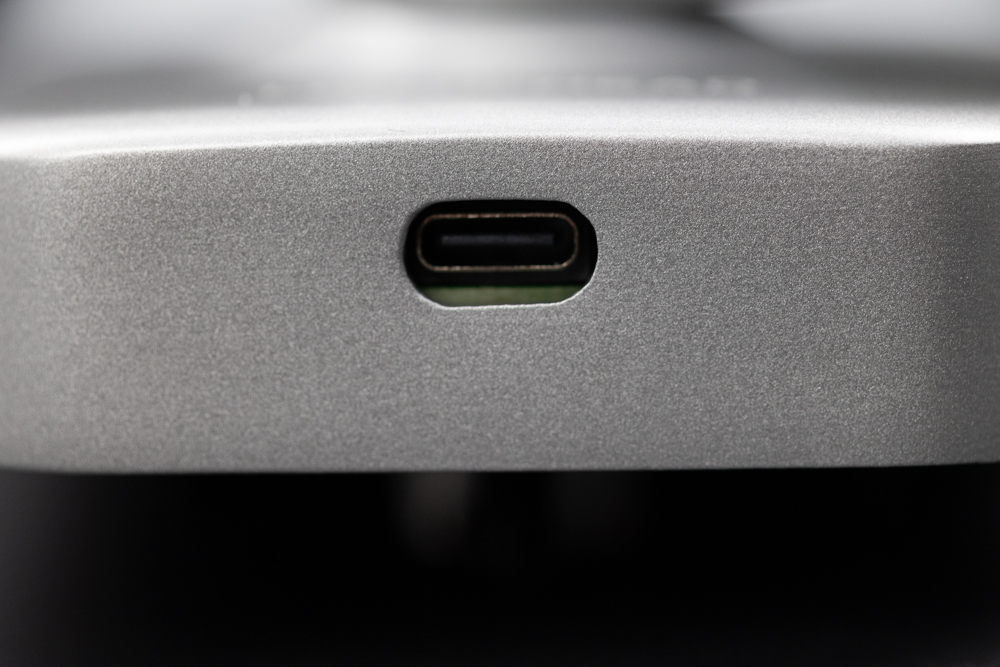

USB Backup Power	YES
User Capacity	200 Fingerprint, 150 PIN code, 200 Card
Working Humidity	20% – 95% RH
Working Temperature	-25C – 55℃
Suitable For	Homes/Residential, Apartments, Short Stay Accomodation
Lock Type	Tubular Latch
Supplied Lock	LHL-HD-ADJ-TUB-LATCH
Compatible Locks	LHL-HD-ADJ-TUB-LATCH, LHL-TUB-LATCH-60MM, LHL-TUB-LATCH-70MM, LHL-TUB-LATCH-127MM,
Handle Type	Lever
Product Codes	LHL-P3-B-CARLISLE (BLACK), LHL-P3-S-CARLISLE (SILVER)
Height (mm)	135
Width (mm)	73
Depth (mm)	22
