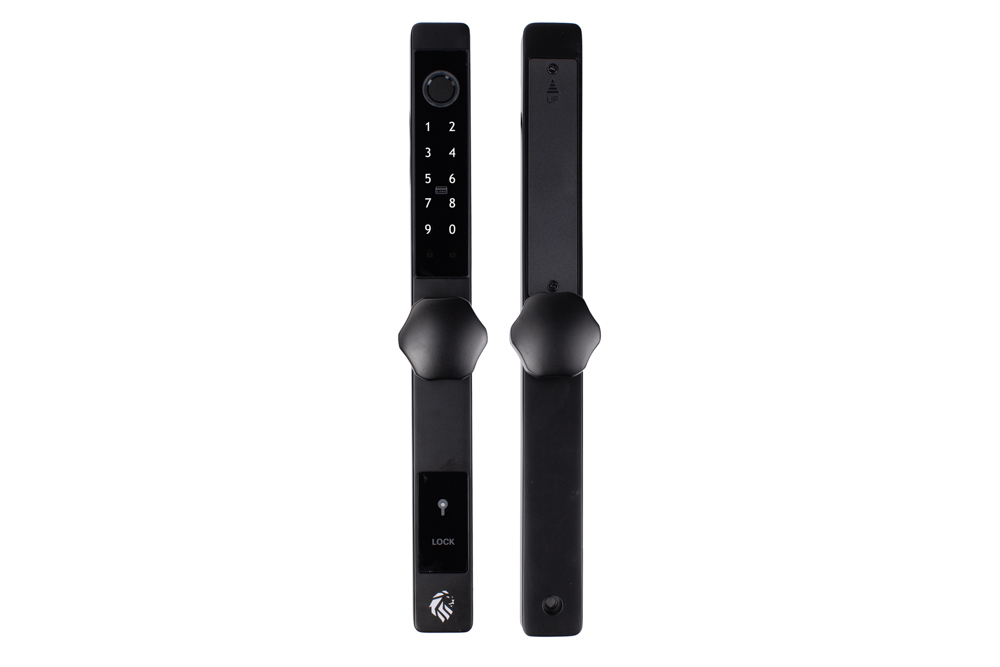

THE LYGON (HEX)

LHL-SA4-H-B-LYGON (BLACK)

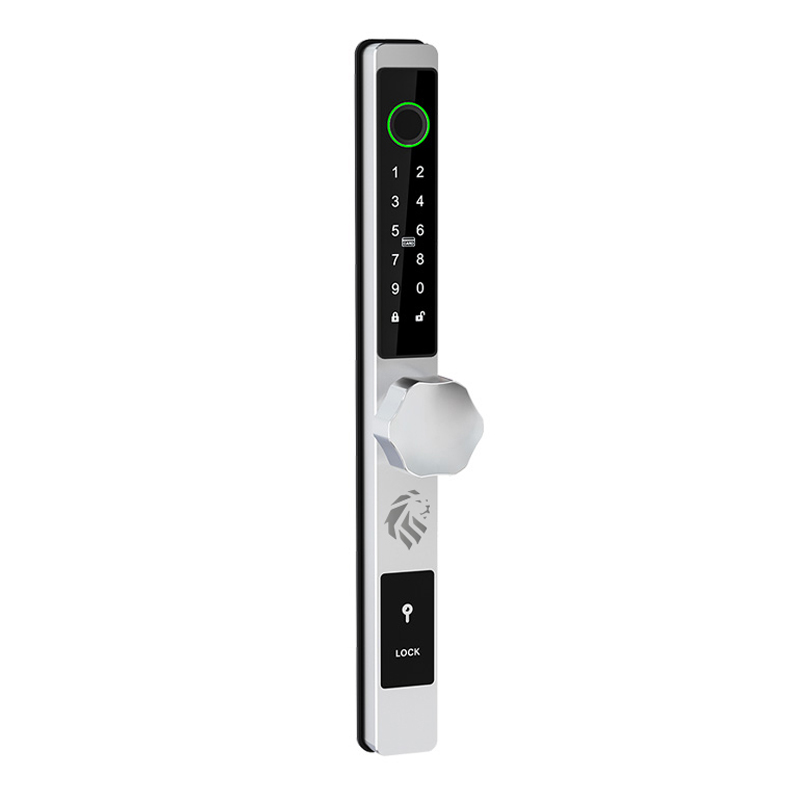

LHL-SA4-H-S-LYGON (SILVER)

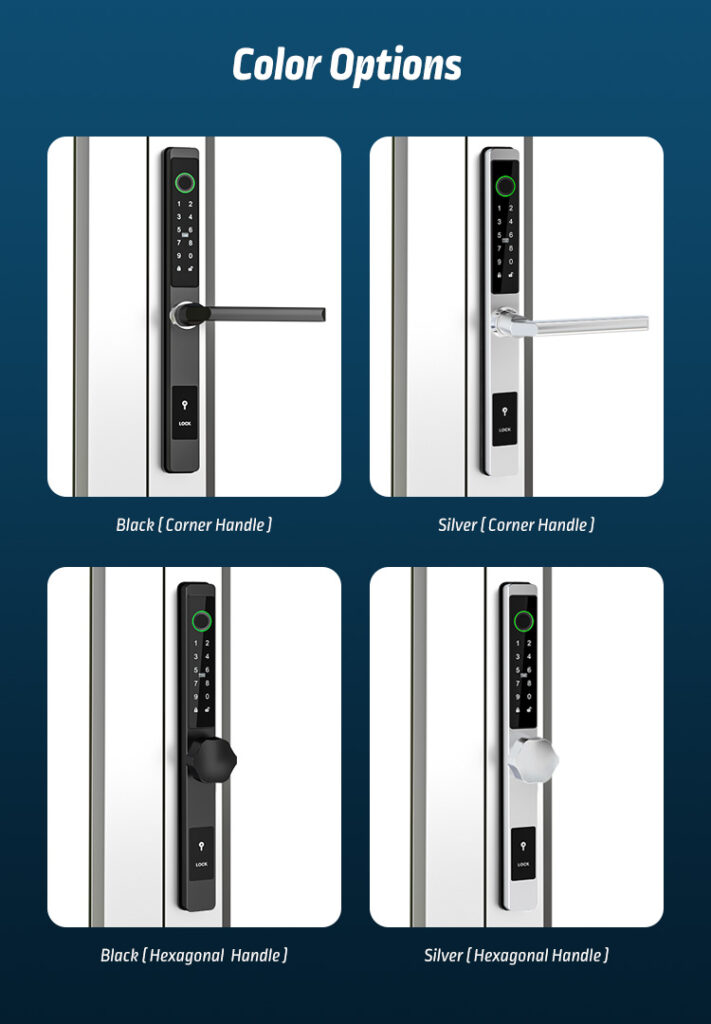

Colours

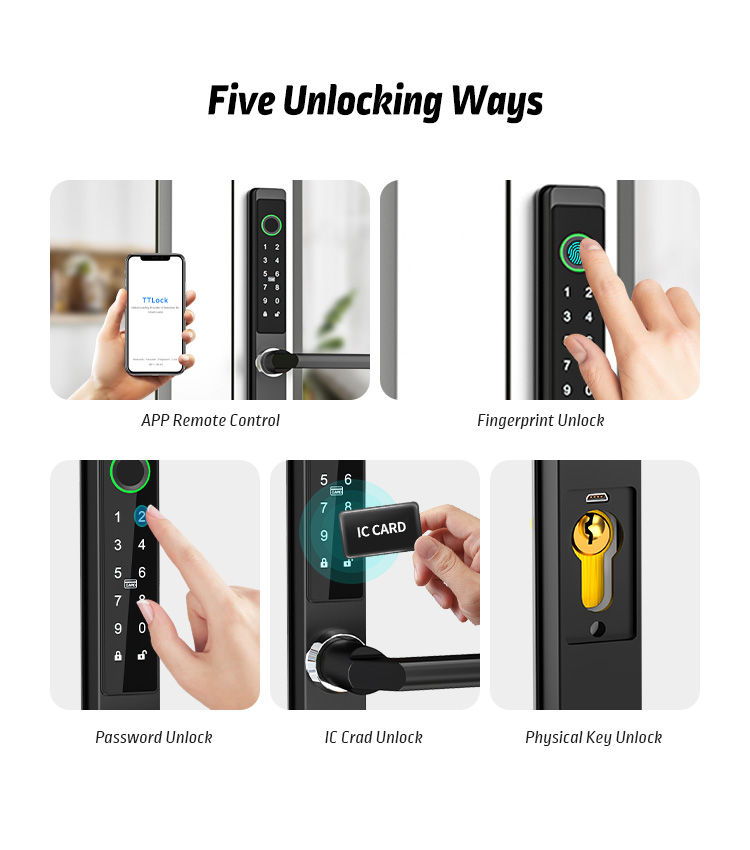

Unlocking Methods:

Mobile App

Pinpad

RFID Card

Fingerprint

Bluetooth

Key

2 YEAR WARRANTY

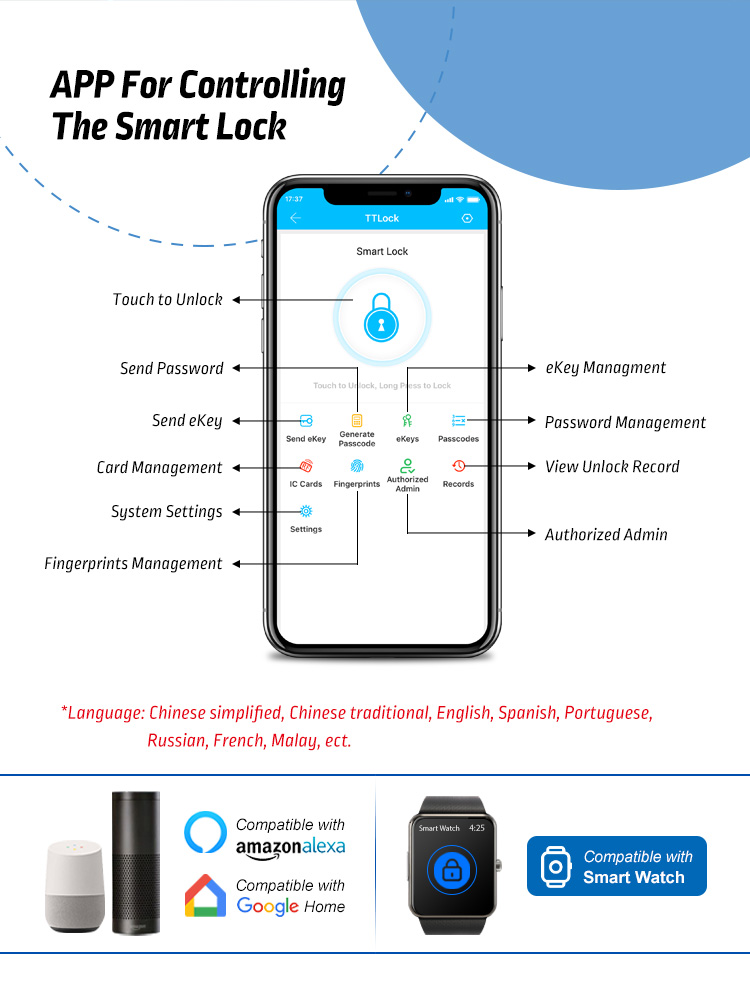

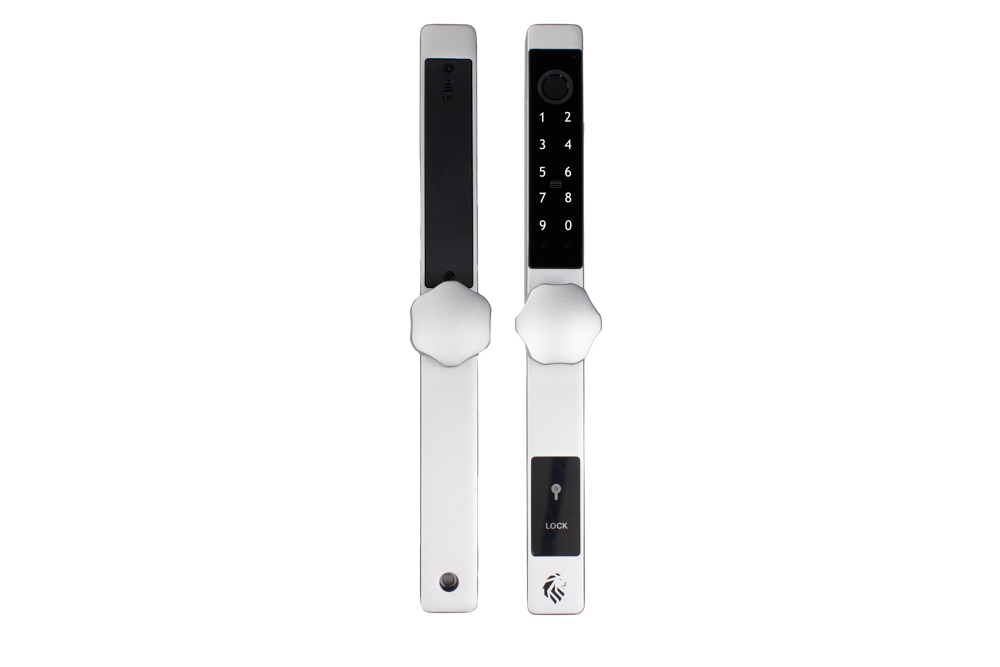

The Lion Head Locks LYGON is a sleek - slimline digital door lock - available with either a lever handle or hexagonal knob. The LYGON offers multiple unlocking methods - including via the TTLock APP - Bluetooth - Fingerprint - PIN code and RFID Fob/Card. There is also the option of using a manual "track style" key in an emergency. The LYGON is rated IP55 (outside only). It is ideal for most applications - other than those at are fully exposed to the elements. The LYGON can be used on both hinged and sliding doors - subject to the type of mortice lock used. The lock is not supplied with a lock body - however - the LYGON will operate with all LHL 85 series swing bolt and hook mortice locks. The LYGON is not recommended for use with a tubular latch. The LYGON is simple to use and is easy to program - using the TTLock APP. The TTLock APP is one of the most popular smart lock applications. It is used in over 200 countries - and it supports more than 30 languages. It is also very secure.

Contact your local Reseller Datasheet User Manual Talk to an Expert

Specifications

Description

Battery	4 x AAA alkaline (not supplied)
Battery Life	Up to 12 months, depending on usage
Colour	Black, Silver

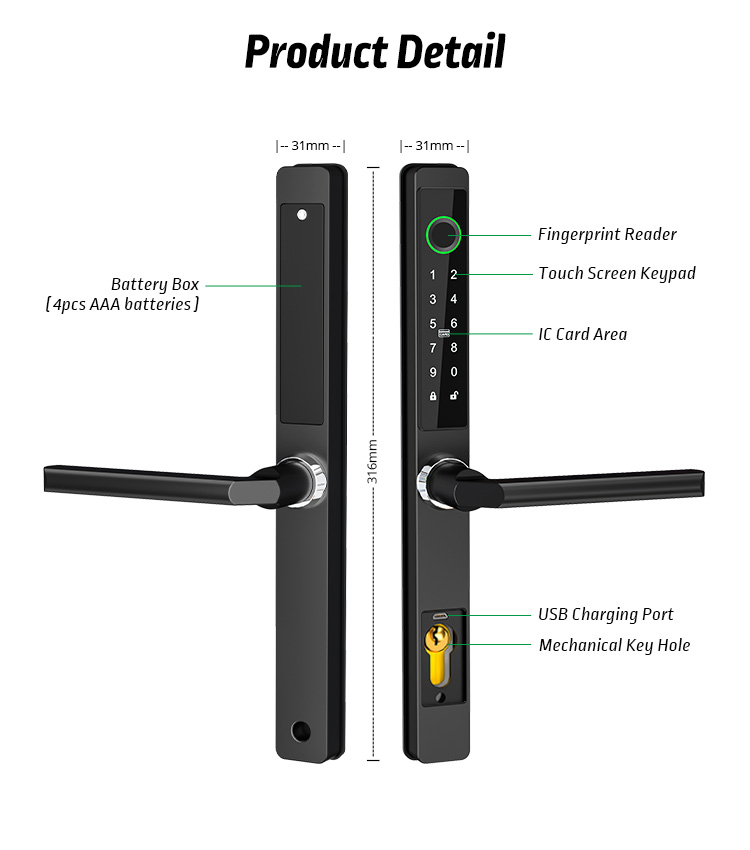

Dimensions	316mm x 31mm x 22mm
Door Thickness	35mm – 65mm
Fire Rated	NA
In Built Wifi	No
IP Rating	IP55 (exterior assembly only)
Key Override	Track Style Key
Material	Aluminium alloy
Projection	NA
Unlocking Methods	APP, Fingerprint, PIN code, Card, Key
User Capacity	200 Fingerprint, 150 PIN code, 200 Card
Working Humidity	20% – 95% RH
Working Temperature	-25C – 55℃
Suitable For	Homes/Residential, Apartments, Short Stay Accomodation
Lock Type	Mortice
Supplied Lock	None

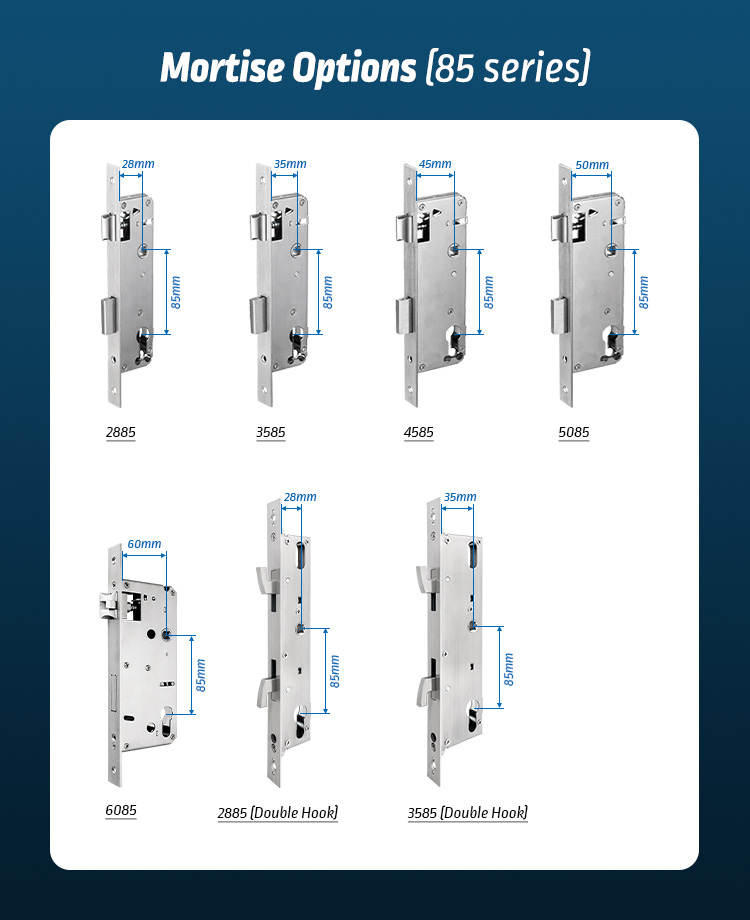

Compatible Locks	LHL-HOOK-28, LHL-HOOK-35, LHL-SW-MORTICE-28, LHL-SW-MORTICE-30, LHL-SW-MORTICE-35, LHL-SW-MORTICE-45, LHL-SW-MORTICE-50, LHL-SW-MORTICE-60, LHL-SW-MORTICE-70

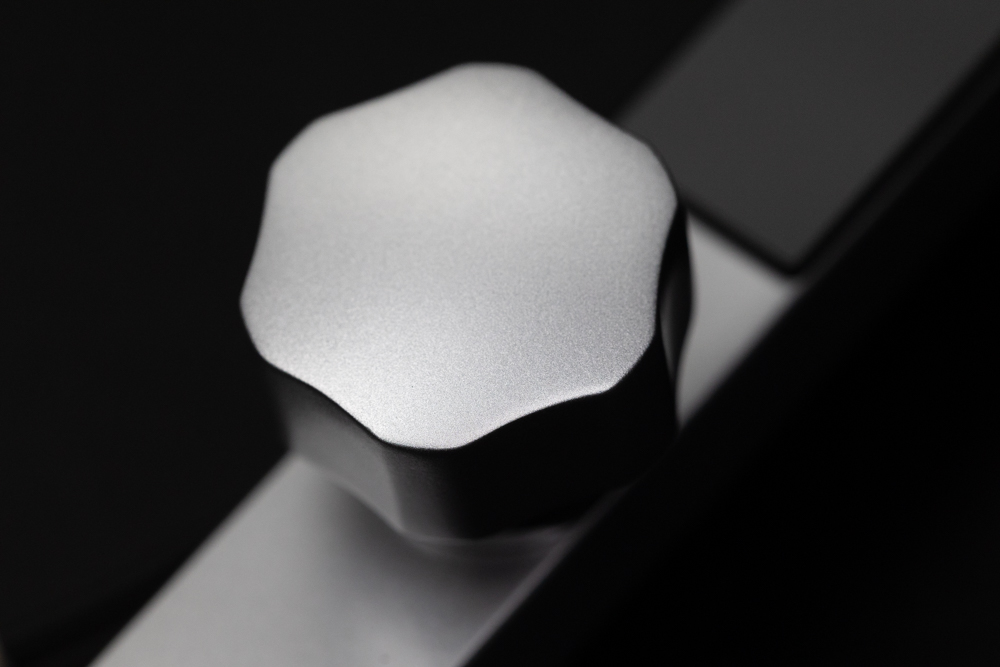

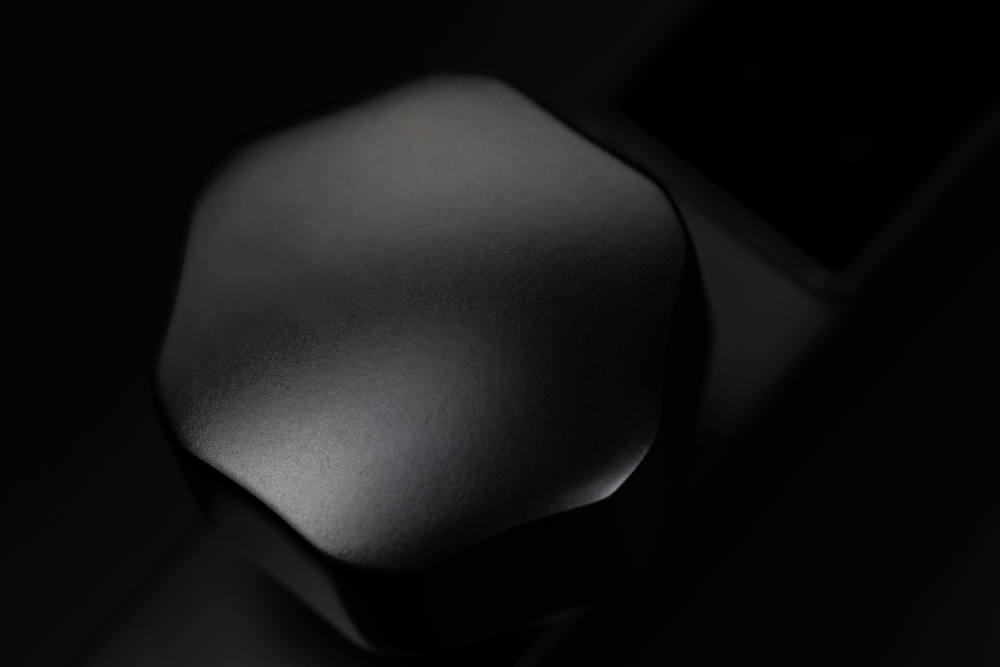

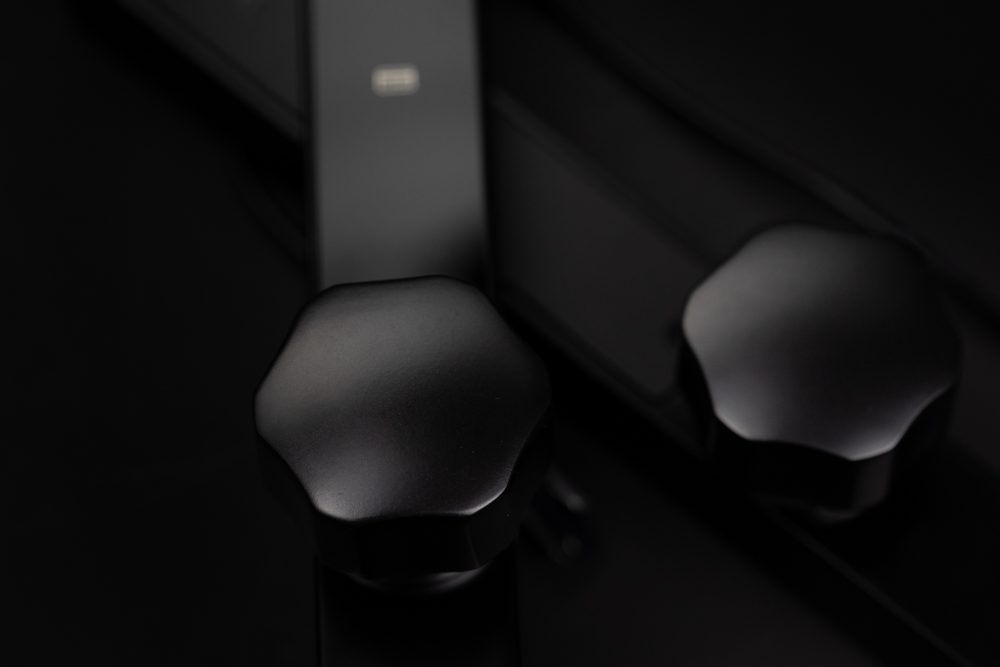

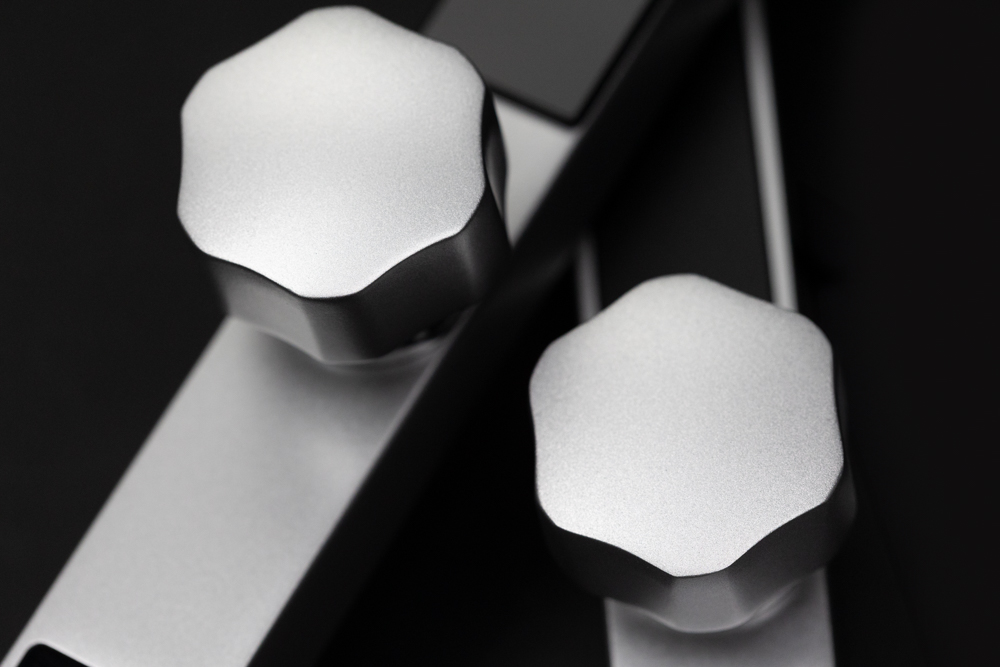

Handle Type	Hex
Product Codes	LHL-SA4-H-B-LYGON (BLACK), LHL-SA4-H-S-LYGON (SILVER)
Height (mm)	316
Width (mm)	31
Depth (mm)	22
