THE ASPEN

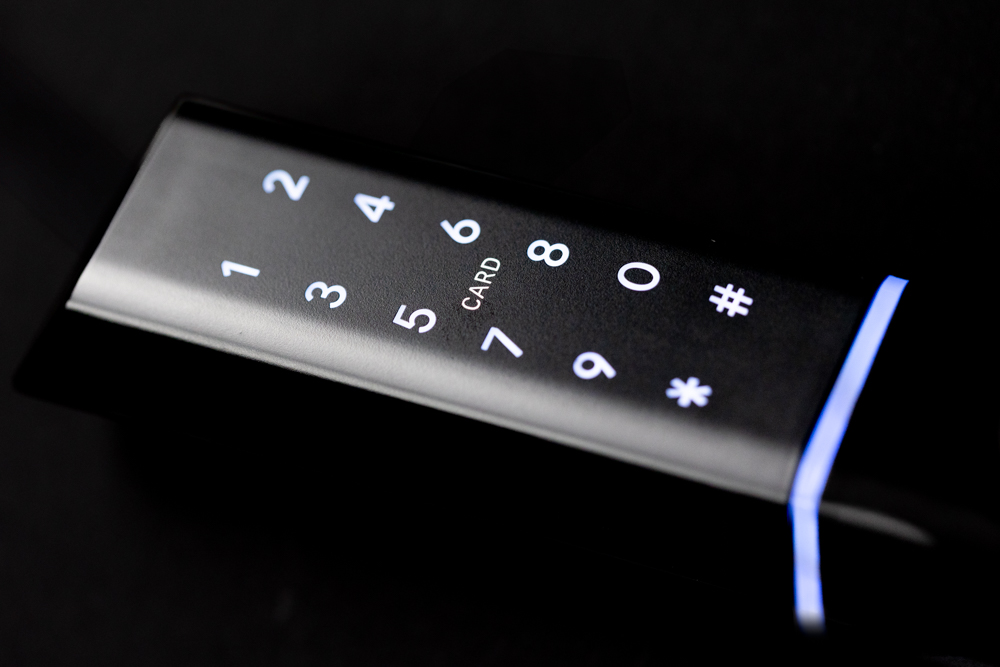

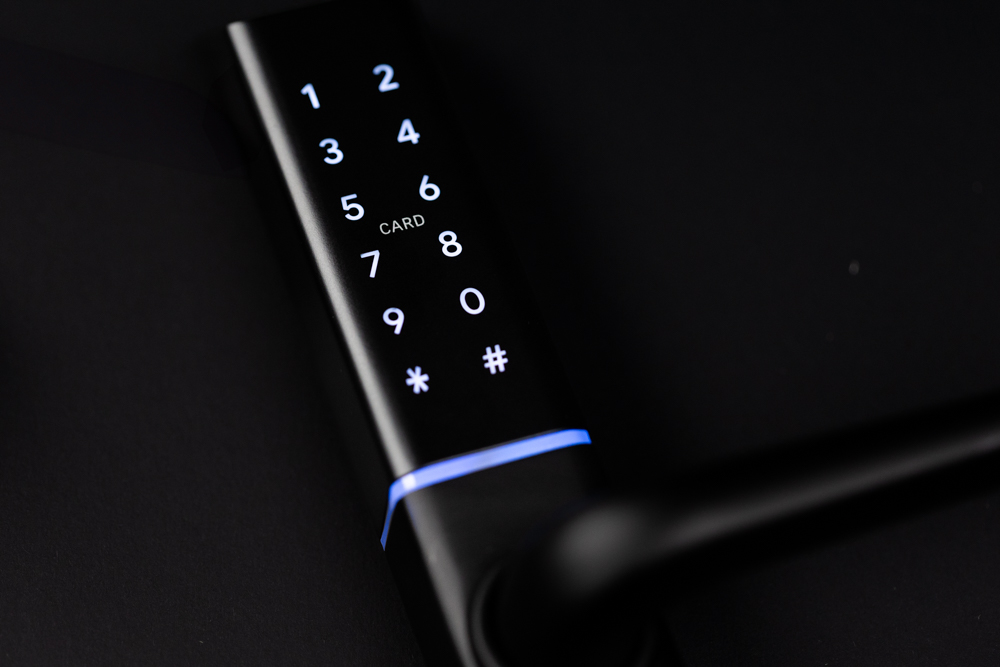

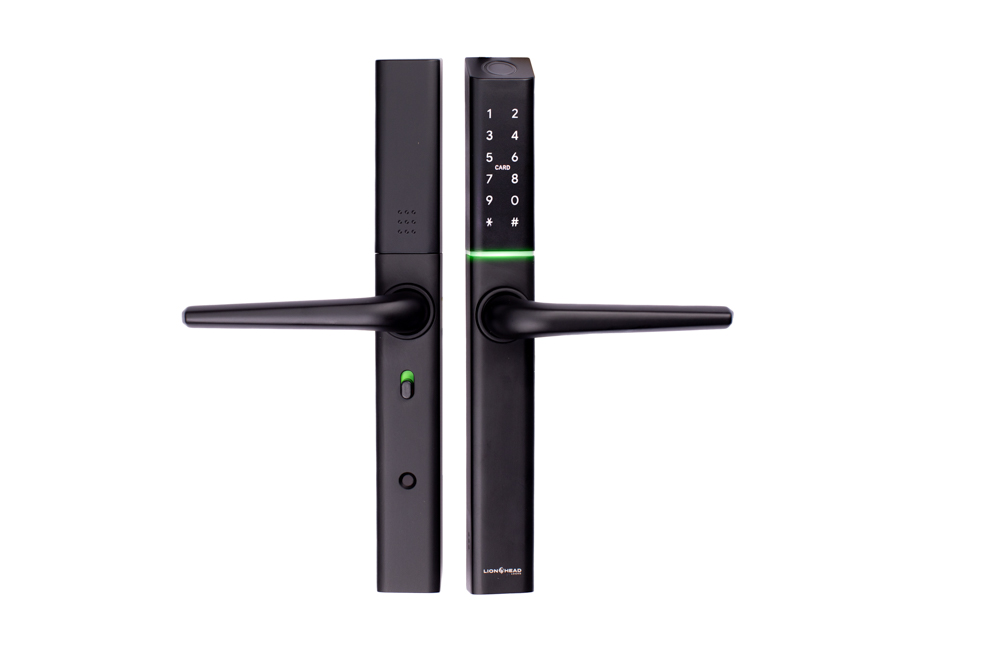

LHL-SL1-30-B-ASPEN (BLACK)

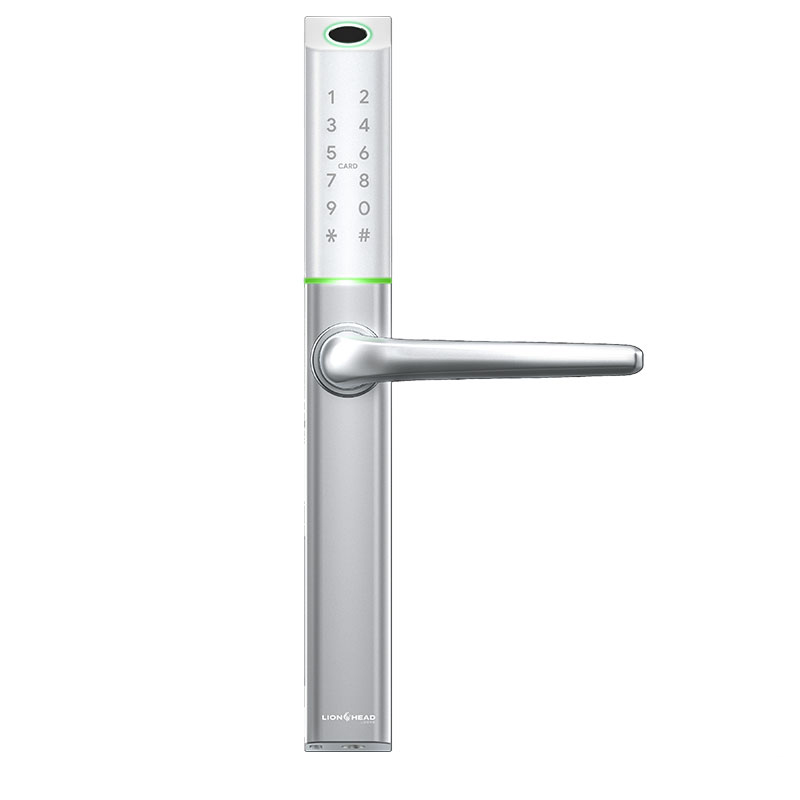

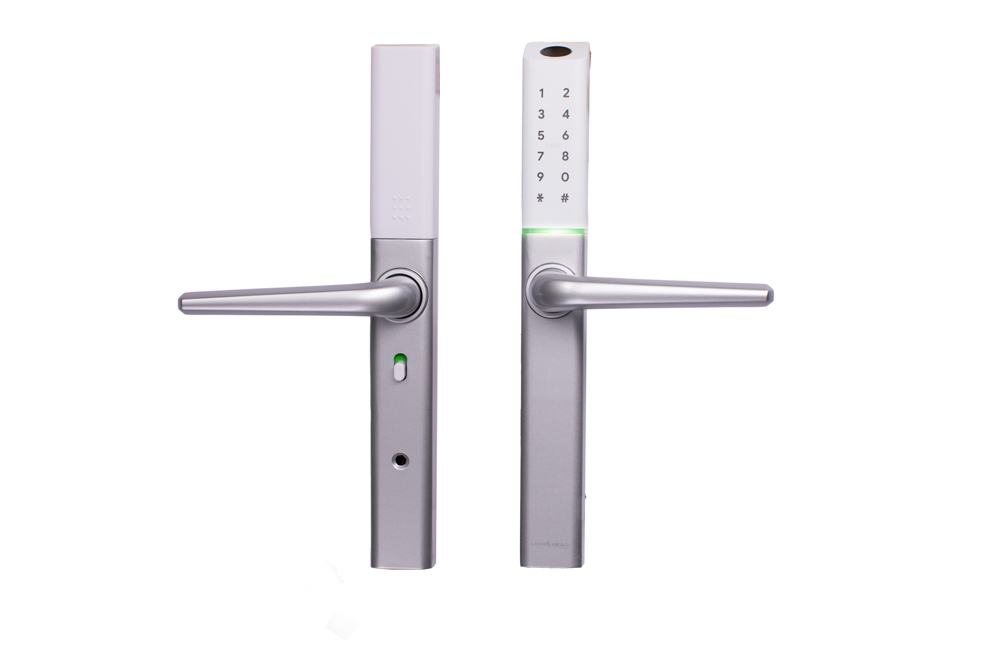

LHL-SL1-30-S-ASPEN (SILVER)

Colours

LUXE

Unlocking Methods:

Mobile App

Pinpad

RFID Card

Fingerprint

Bluetooth

Key

2 Year Warranty The Lion Head Locks ASPEN is a modern - sleek digital door lock. The ASPEN offers multiple unlocking methods - including via the TTLock APP - Bluetooth - Fingerprint - PIN code and RFID Fob/Card. There is also the option of using a manual "track style" key in an emergency. The ASPEN is rated IP66 (exterior only). If the lock is fully exposed to the elements - the interior assembly needs to be protected from moisture. The lock is supplied with the LHL-SW-MORTICE-35 mortice lock (85 series) - with 35mm backset and 85mm pitch. It will also work with all Lion Head Locks 85 series mortice locks. The ASPEN is simple to use and is easy to program - using the TTLock APP. The TTLock APP is one of the most popular smart lock applications. It is used in over 200 countries - and it supports more than 30 languages. It is also very secure.

Contact your local Reseller Datasheet User Manual Talk to an Expert

Specifications

Description

Battery	4 x AAA alkaline (not supplied)
Battery Life	Up to 12 months, depending on usage
Colour	Black, Silver

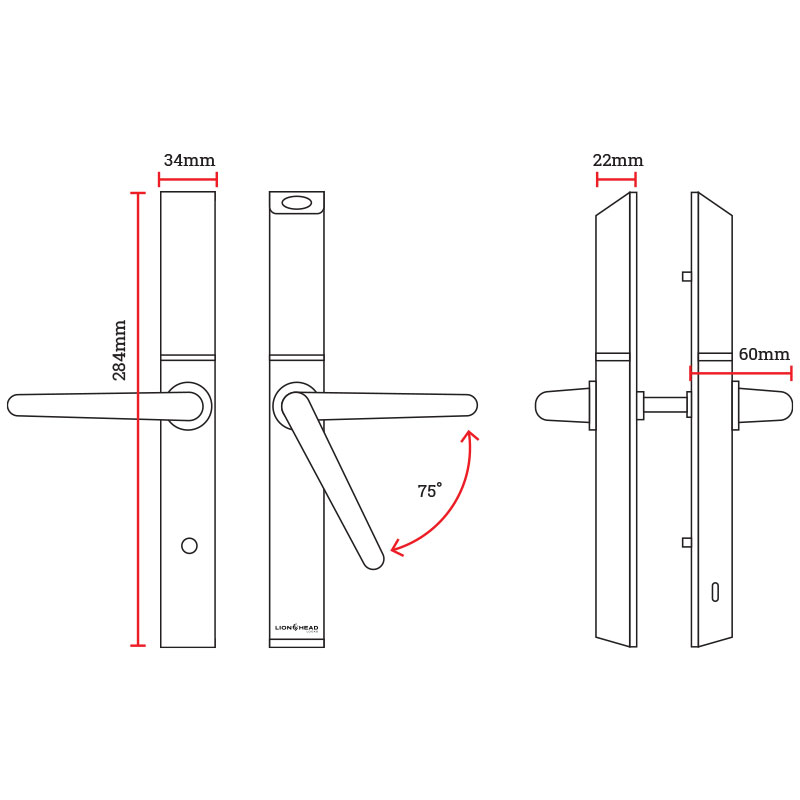

Dimensions	284mm x 34mm x 22mm
Door Thickness	35mm – 65mm
Fire Rated	NA
In Built Wifi	No
IP Rating	IP66 (exterior assembly only)

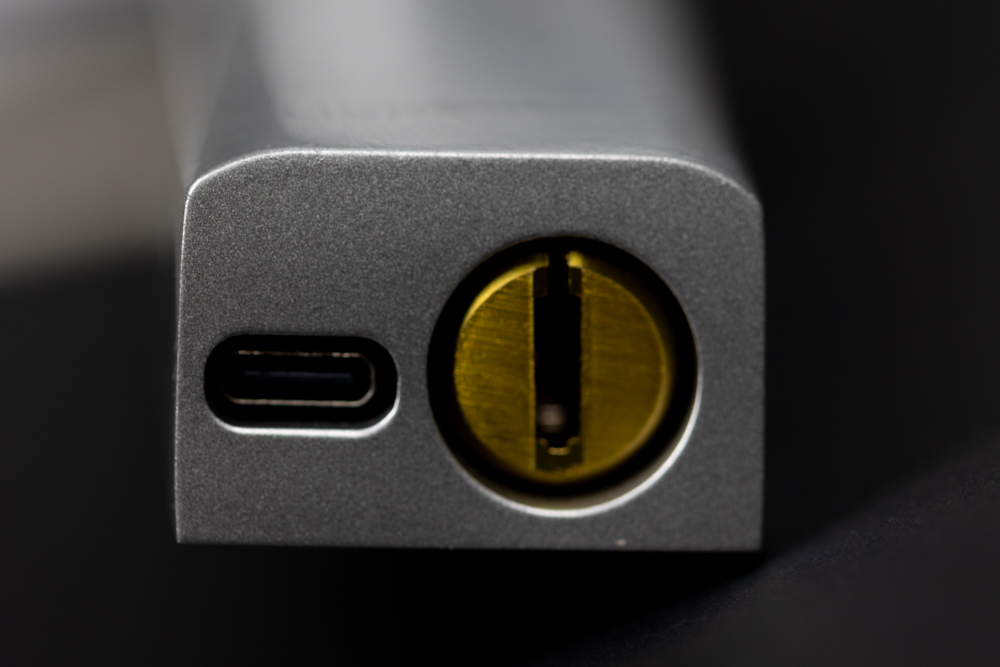

Key Override	Track Style Key
Material	Aluminium alloy
Projection	NA
Unlocking Methods	APP, Fingerprint, PIN code, Card, Key
USB Backup Power	YES
User Capacity	200 Fingerprint, 150 PIN code, 200 Card
Working Humidity	20% – 95% RH
Working Temperature	-25C – 55℃
Suitable For	Homes/Residential, Apartments, Short Stay Accomodation
Lock Type	Mortice
Supplied Lock	LHL-SW-MORTICE-30
Compatible Locks	LHL-SW-MORTICE-28, LHL-SW-MORTICE-35, LHL-SW-MORTICE-45, LHL-SW-MORTICE-50, LHL-SW-MORTICE-60, LHL-SW-MORTICE-70, LHL-HOOK-28, LHL-HOOK-35, LHL-SW-MORTICE-30
Handle Type	Lever
Product Codes	LHL-SL1-30-B-ASPEN (BLACK), LHL-SL1-30-S-ASPEN (SILVER)
Height (mm)	284
Width (mm)	34
Depth (mm)	22
