THE LONSDALE

LHL-ED2-B-LONSDALE (BLACK)

LHL-ED2-S-LONSDALE (SILVER)

Colours

Unlocking Methods:

Mobile App

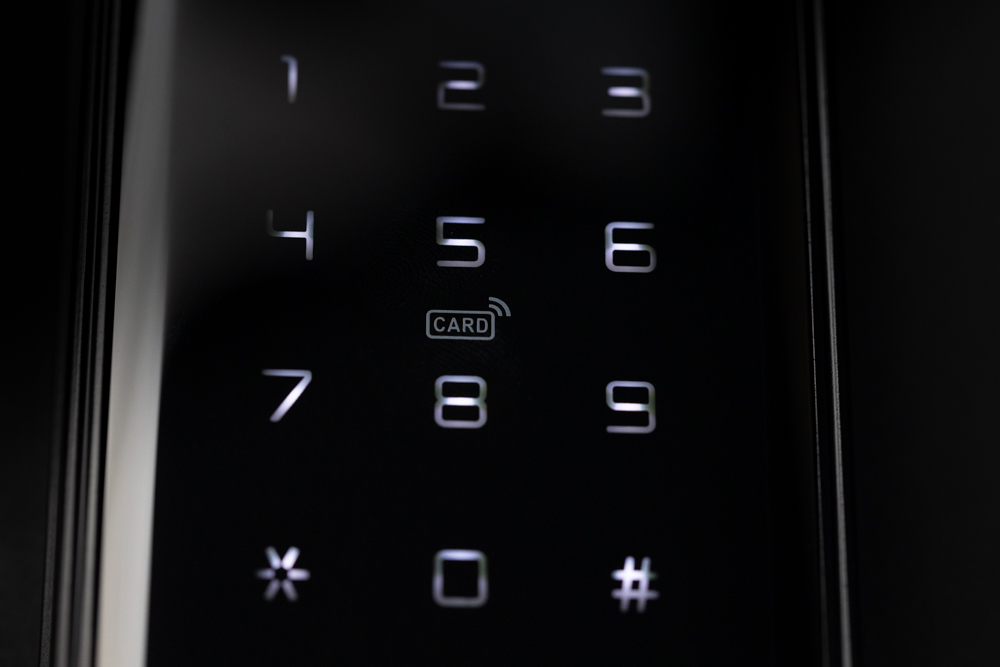

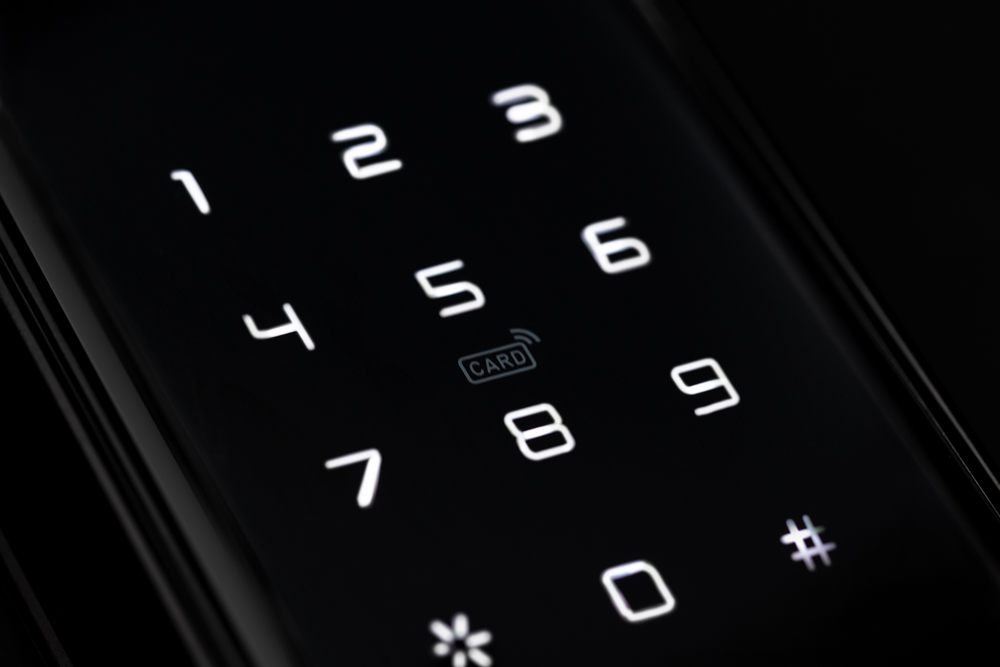

Pinpad

RFID Card

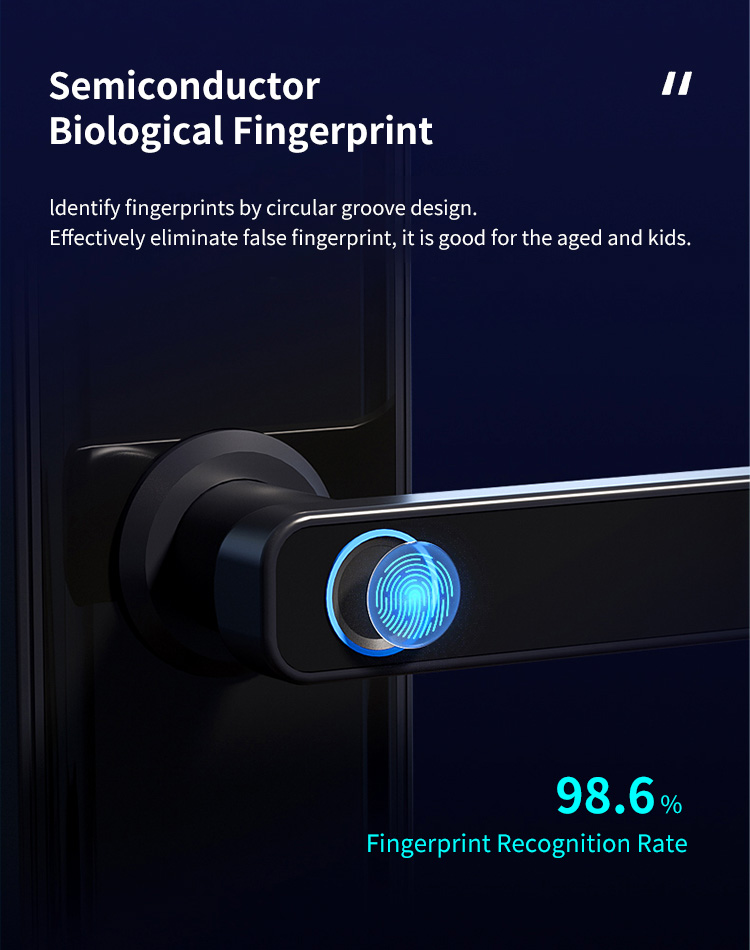

Fingerprint

Bluetooth

Key

2 Year Warranty

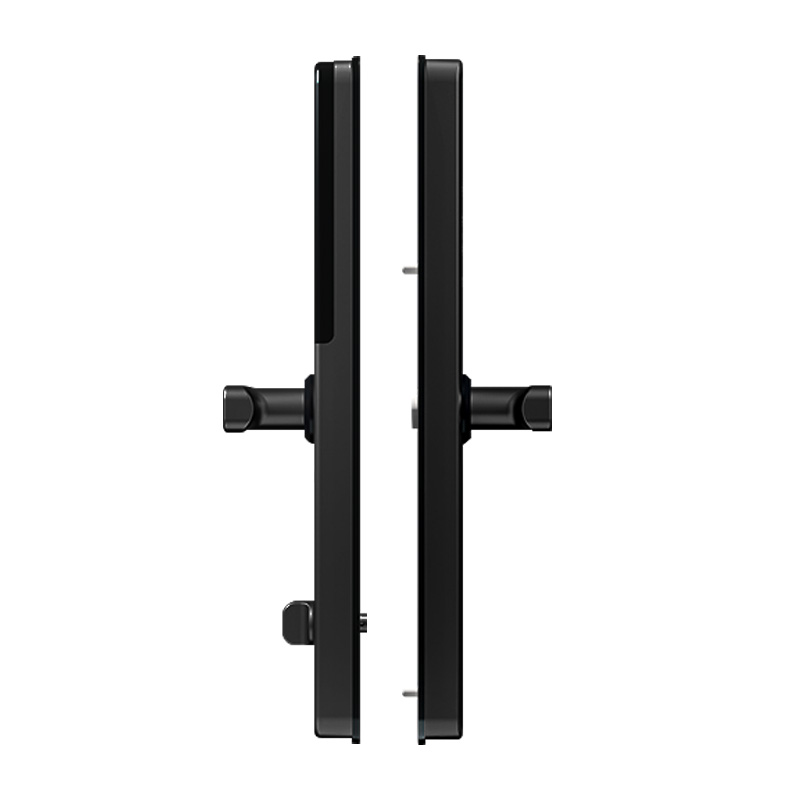

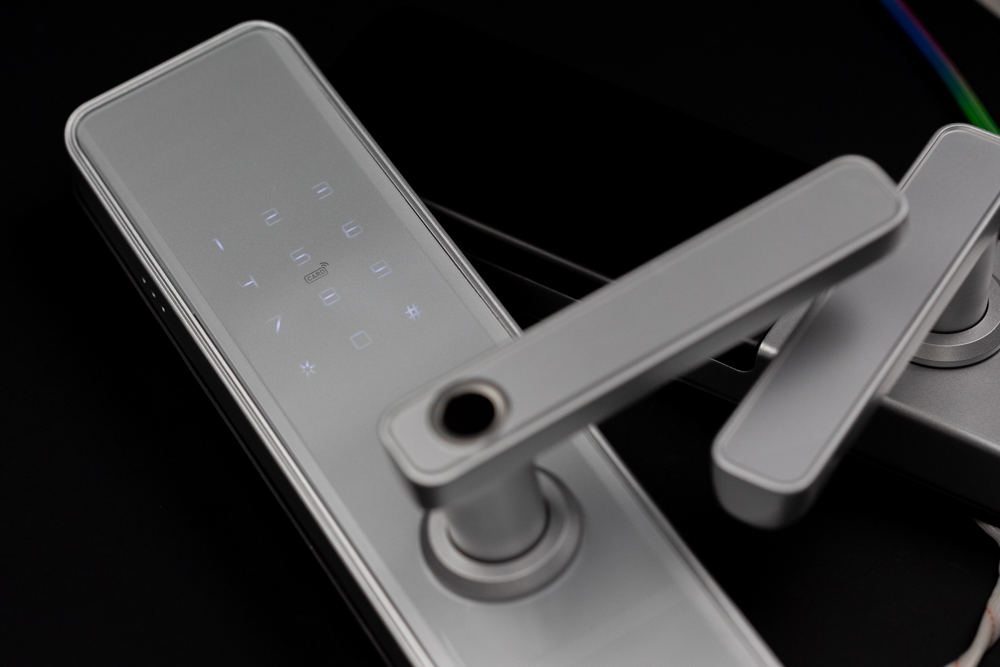

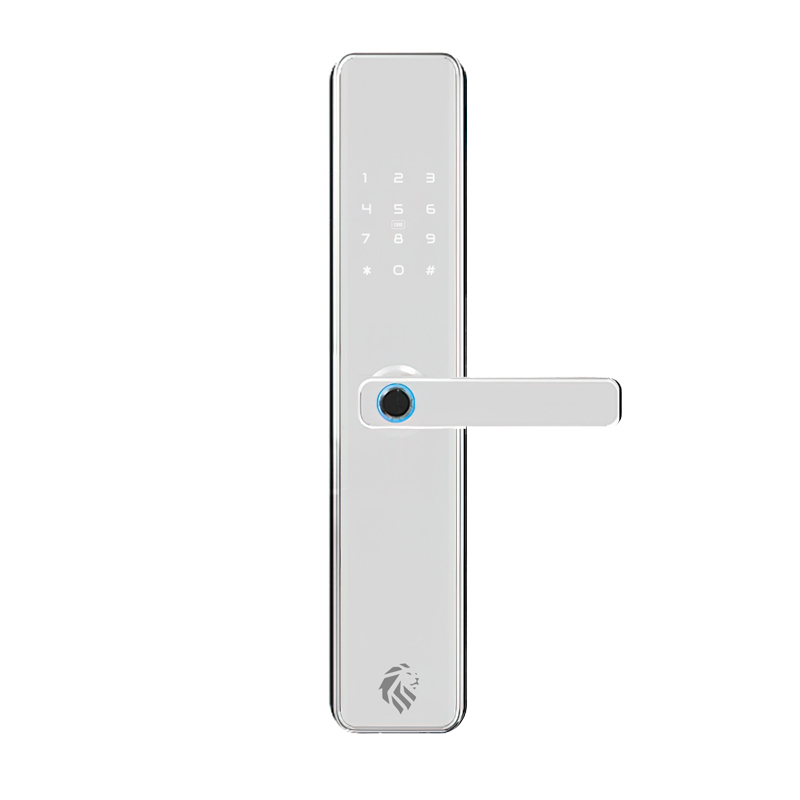

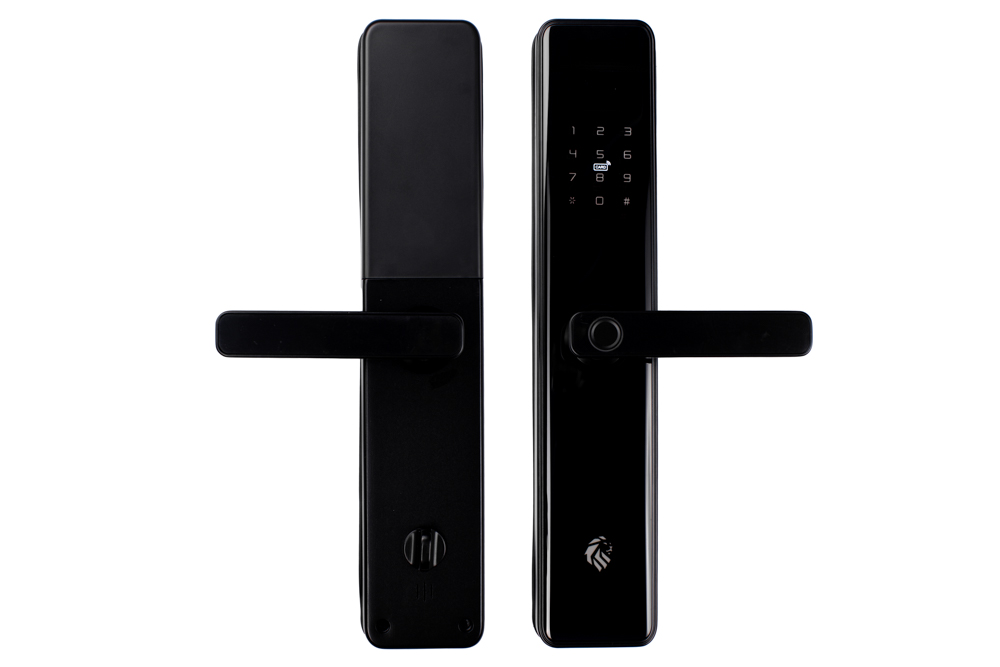

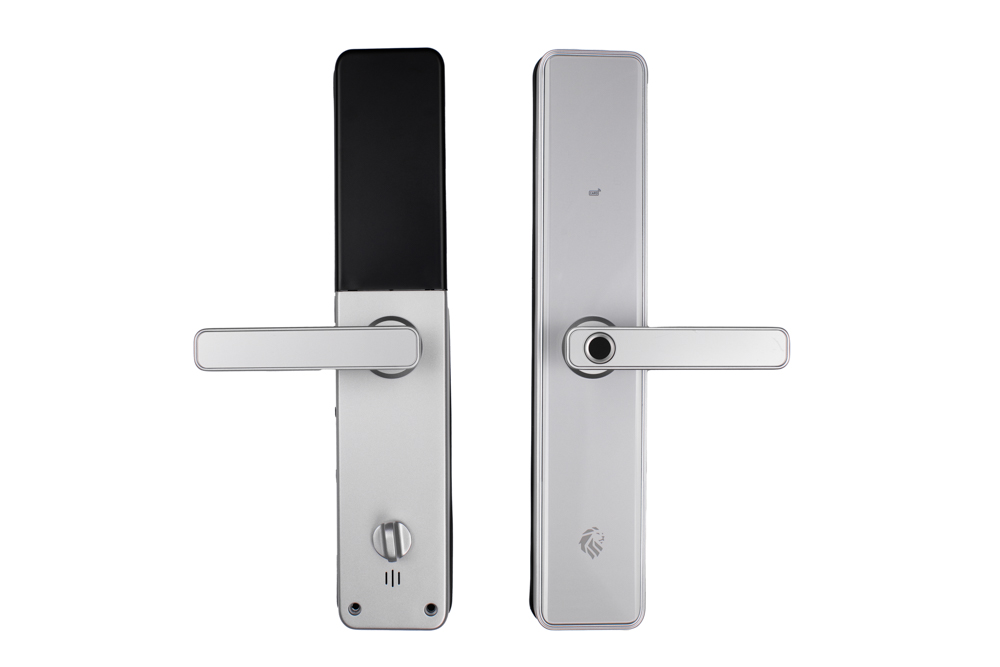

The Lion Head Locks LONSDALE is modern, commercial grade digital door lock.

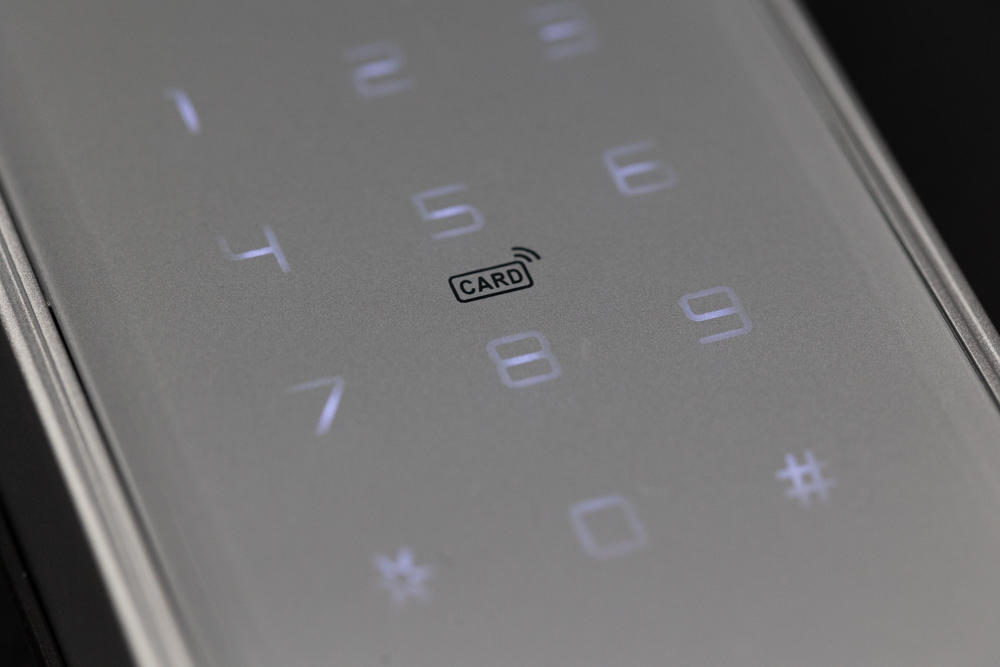

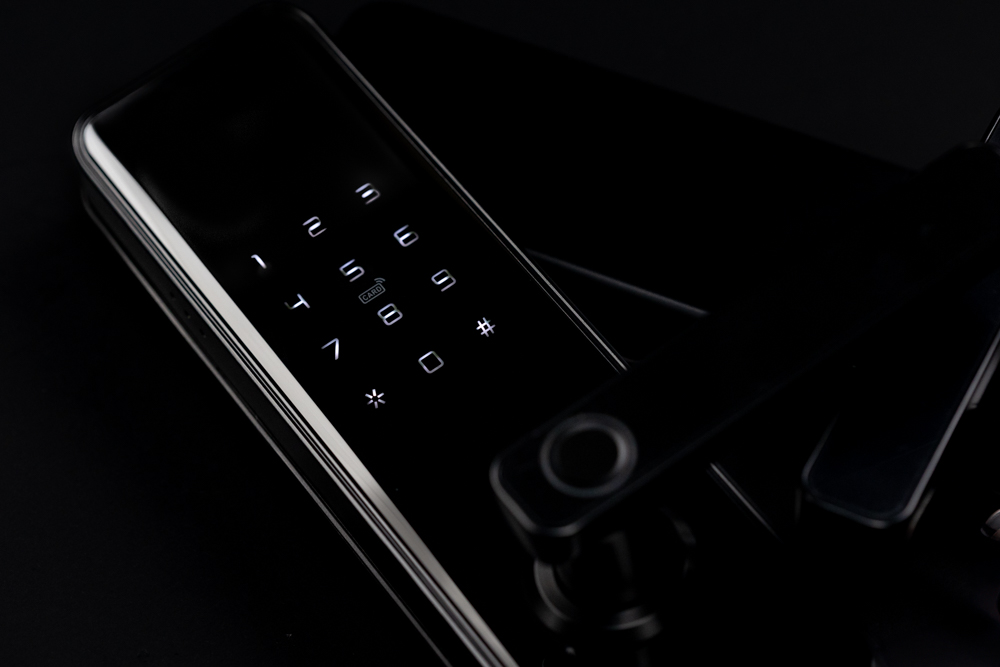

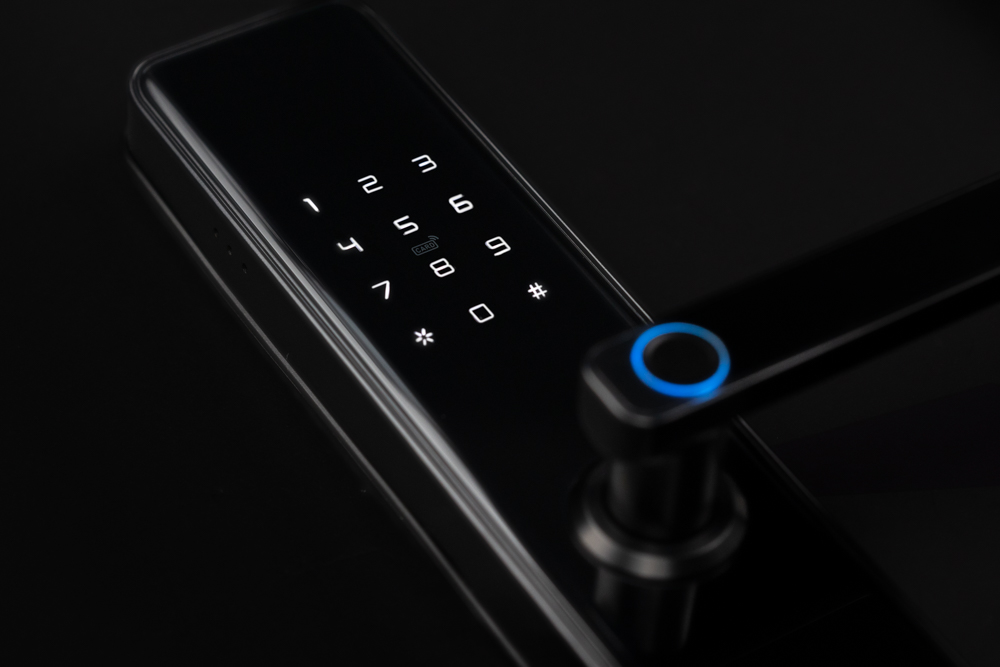

The LONSDALE offers multiple unlocking methods, including via the TTLock APP, Bluetooth, Fingerprint, PIN code and RFID Fob/Card. There is also the option of using a manual “track style” key in an emergency.

The LONSDALE is rated IP55 (outside only), making it suitable for areas with minimal exposure to the elements. It is not recommended for applications that are fully exposed to the elements.

The lock is supplied with the LHL-SW-MORTICE-6068 heavy duty mortice lock. It will also work with Lion Head Locks tubular latches, LHL 5050 & 6050 series mortice locks & LHL 85 series mortice locks.

The LONSDALE is simple to use and is easy to program, using the TTLock APP.

The TTLock APP is one of the most popular smart lock applications. It is used in over 200 countries, and it supports more than 30 languages. It is also very secure.

Contact your local Reseller Datasheet User Manual Talk to an Expert

Specifications

Description

Battery	4 x AA alkaline (not supplied)
Battery Life	Up to 12 months, depending on usage

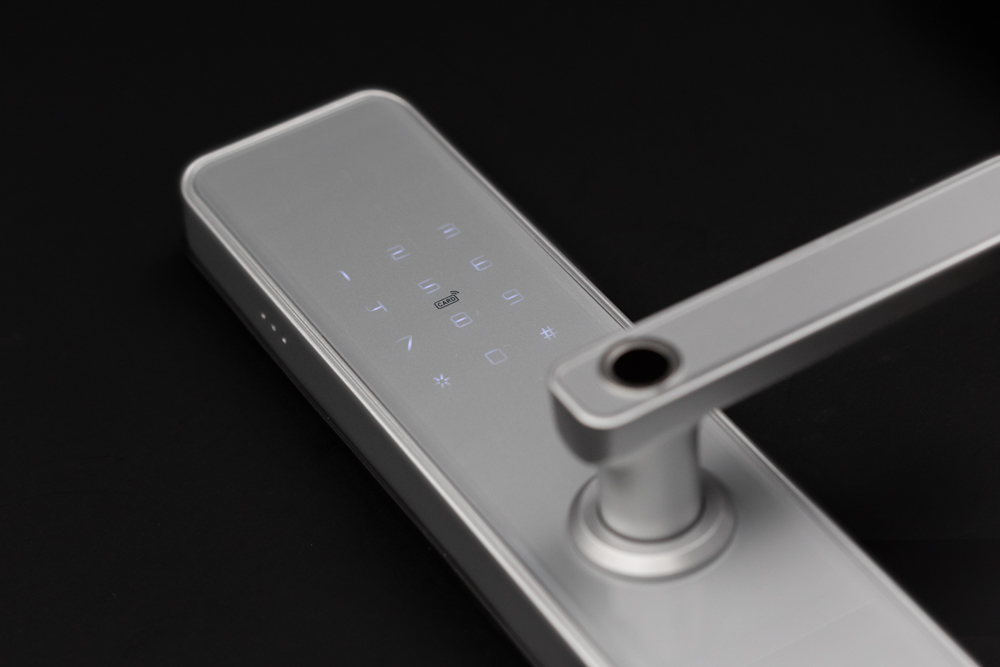

Colour	Black, Silver

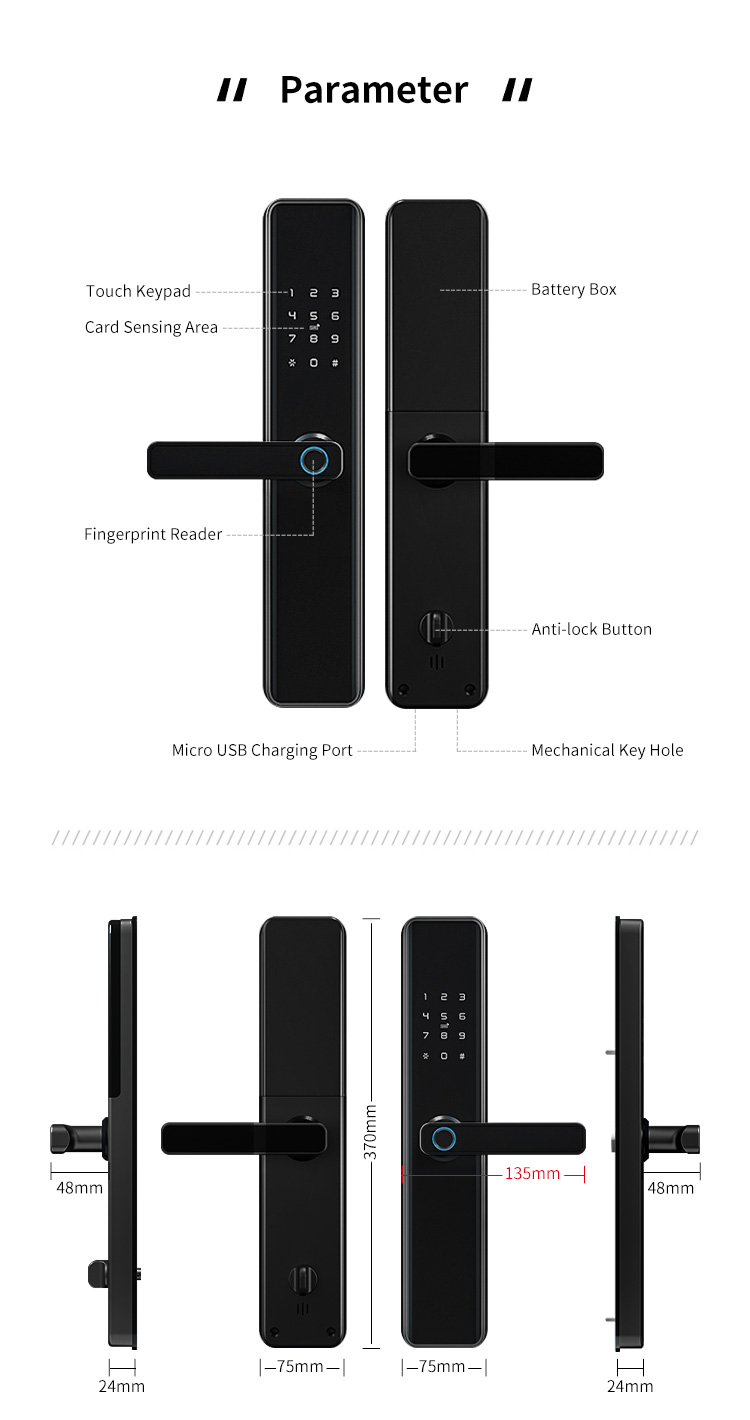

Dimensions	370mm x 75mm x 22mm
Door Thickness	35mm – 65mm
Fire Rated	NA
In Built Wifi	No
IP Rating	IP55 (exterior assembly only)

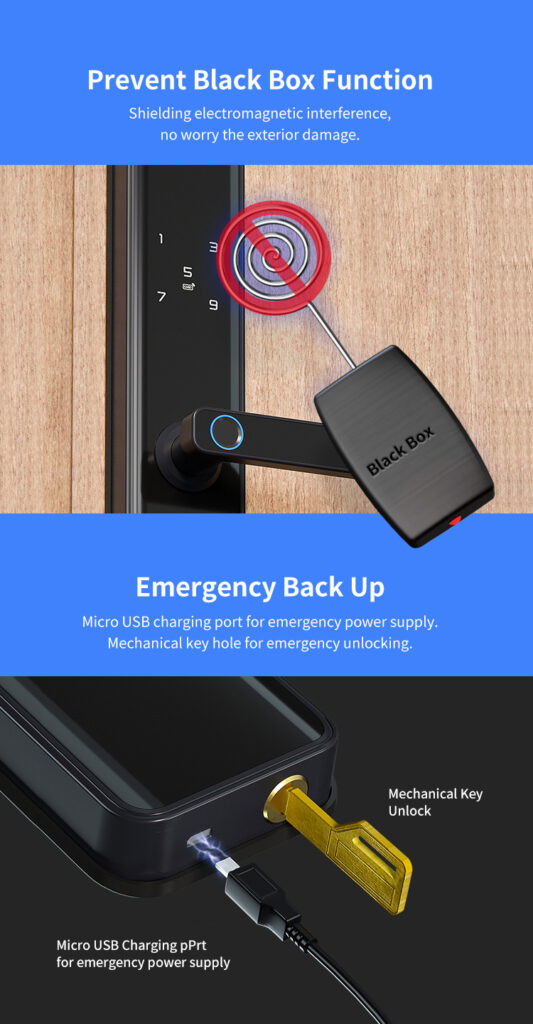

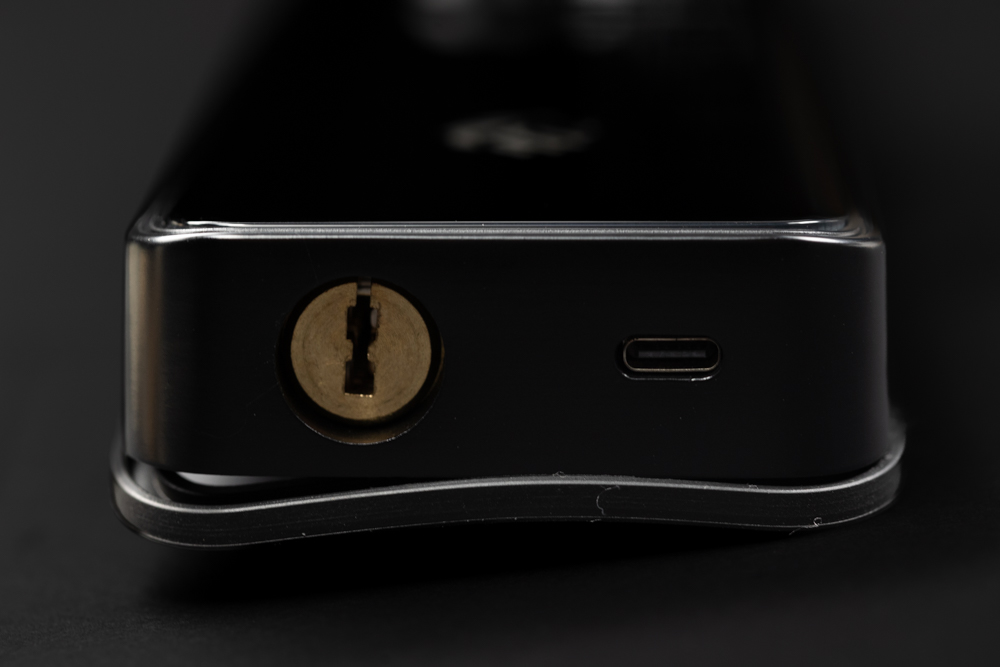

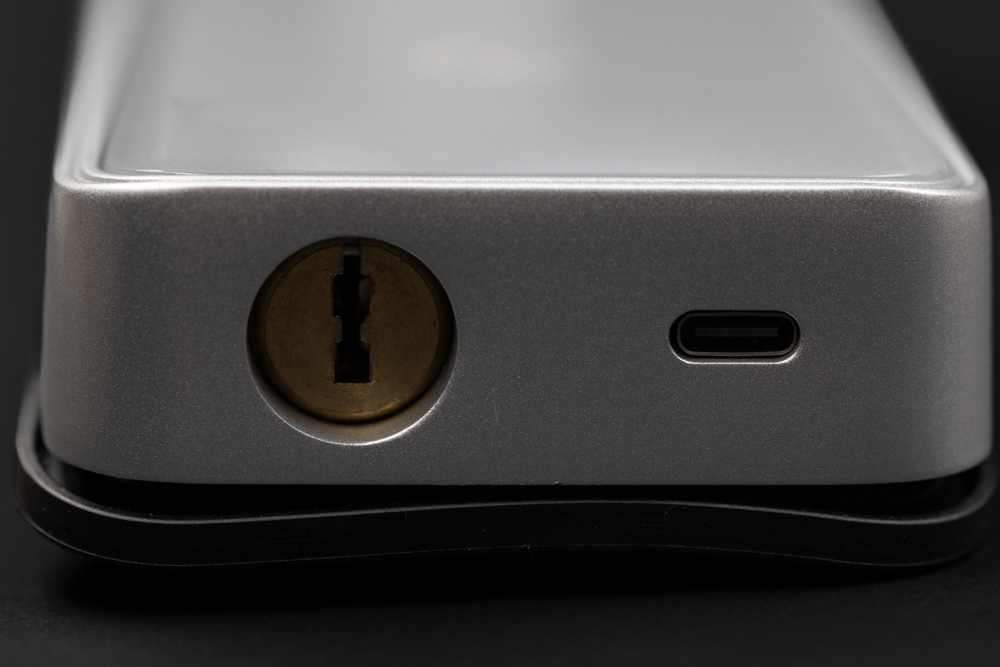

Key Override	Track Style Key
Material	Aluminium alloy
Projection	NA

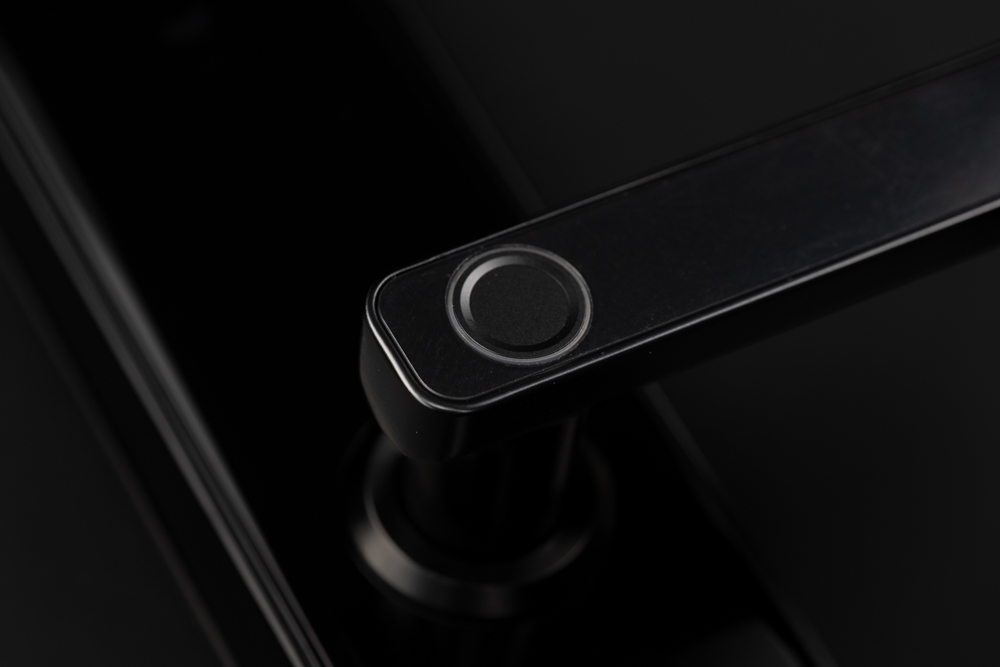

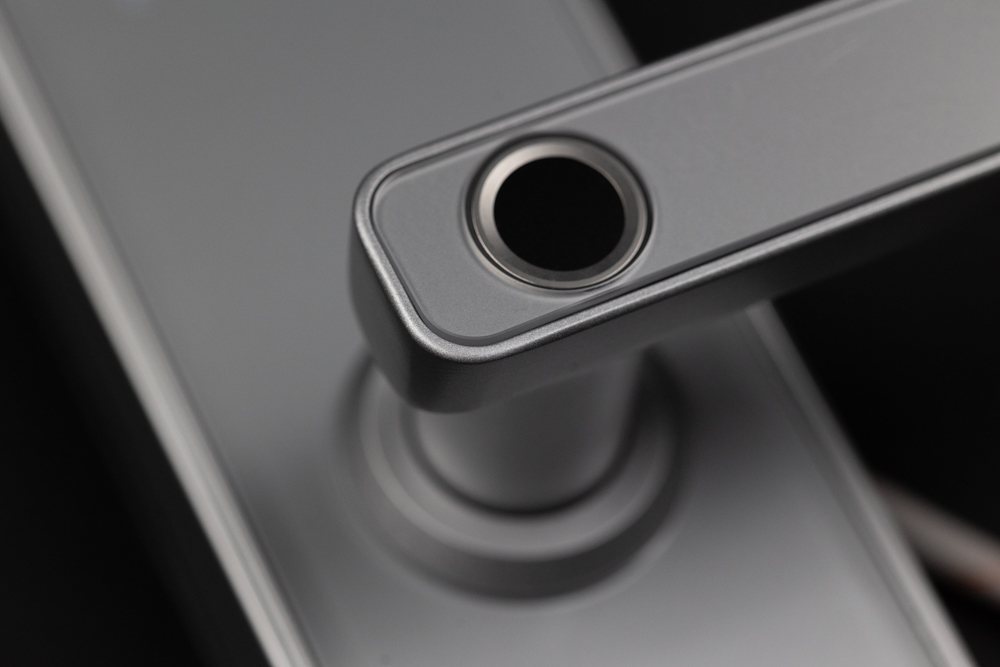

Unlocking Methods	APP, Fingerprint, PIN code, Card, Key
User Capacity	200 Fingerprint, 150 PIN code, 200 Card
Working Humidity	20% – 95% RH
Working Temperature	-25C – 55℃
Suitable For	Homes/Residential, Apartments, Short Stay Accomodation
Lock Type	Tubular Latch, Mortice

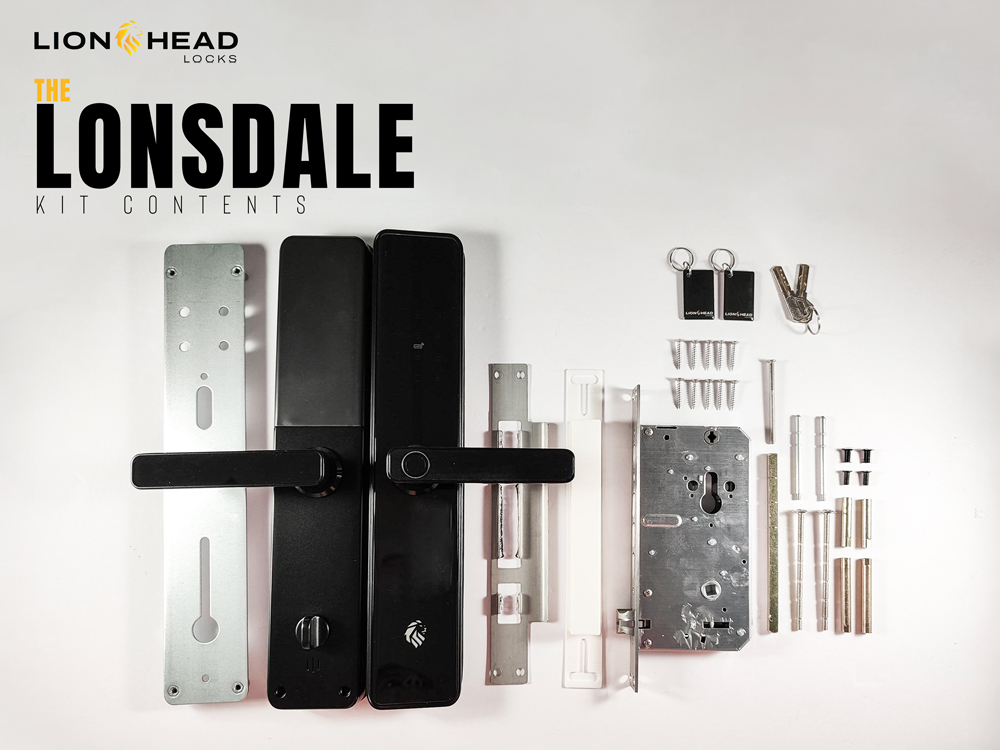

Supplied Lock	LHL-SW-MORTICE-6068
Compatible Locks	LHL-HD-ADJ-TUB-LATCH, LHL-TUB-LATCH-60MM, LHL-TUB-LATCH-70MM, LHL-TUB-LATCH-127MM, LHL-SW-MORTICE-5050-147, LHL-SW-MORTICE-5050-200, LHL-SW-MORTICE-6050-147, LHL-SW-MORTICE-6068
Handle Type	Lever
Product Codes	LHL-ED2-B-LONSDALE (BLACK), LHL-ED2-S-LONSDALE (SILVER)
Height (mm)	370
Width (mm)	75
Depth (mm)	22
