| Battery | 4 x AA alkaline (not supplied) |
|---|---|
| Battery Life | Up to 12 months, depending on usage |
| Colour | Black, Silver |
| Dimensions | 310mm 39mm x 23mm |
| Door Thickness | 35mm – 65mm |
| Fire Rated | NA |
| In Built Wifi | No |
| IP Rating | IP55 (exterior assembly only) |
| Key Override | Track Style Key |
| Material | Aluminium alloy |
| Projection | NA |
| Unlocking Methods | APP, Fingerprint, PIN code, Card, Key |
| USB Backup Power | YES |
| User Capacity | 200 Fingerprint, 150 PIN code, 200 Card |
| Working Humidity | 20% – 95% RH |
| Working Temperature | -25C – 55℃ |
| Suitable For | Homes/Residential, Apartments, Short Stay Accomodation |
| Lock Type | Mortice |
| Supplied Lock | LHL-SW-MORTICE-35 |

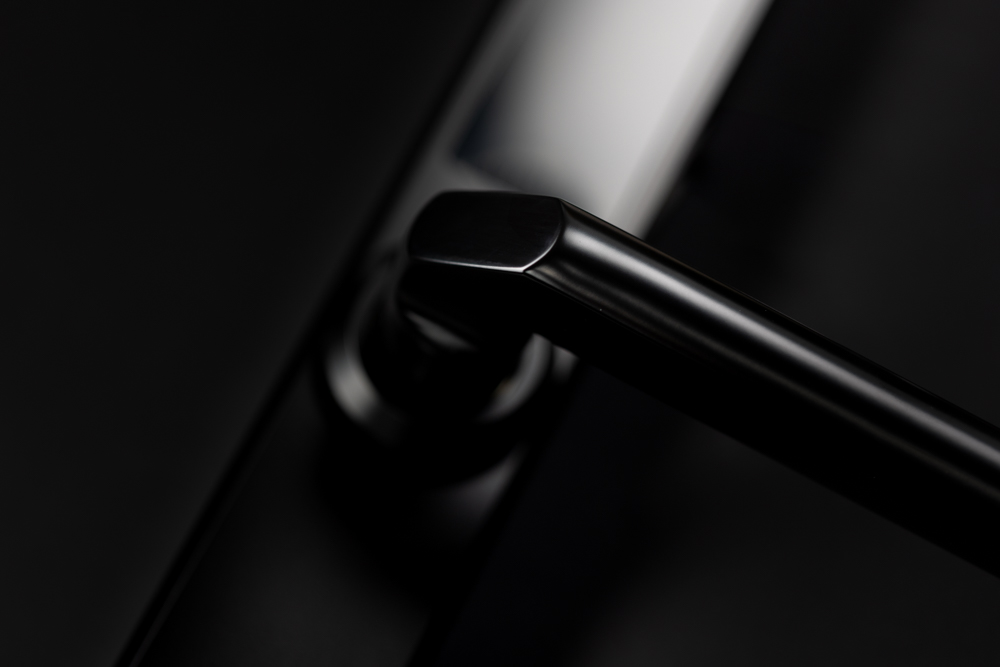

| Handle Type | Lever |

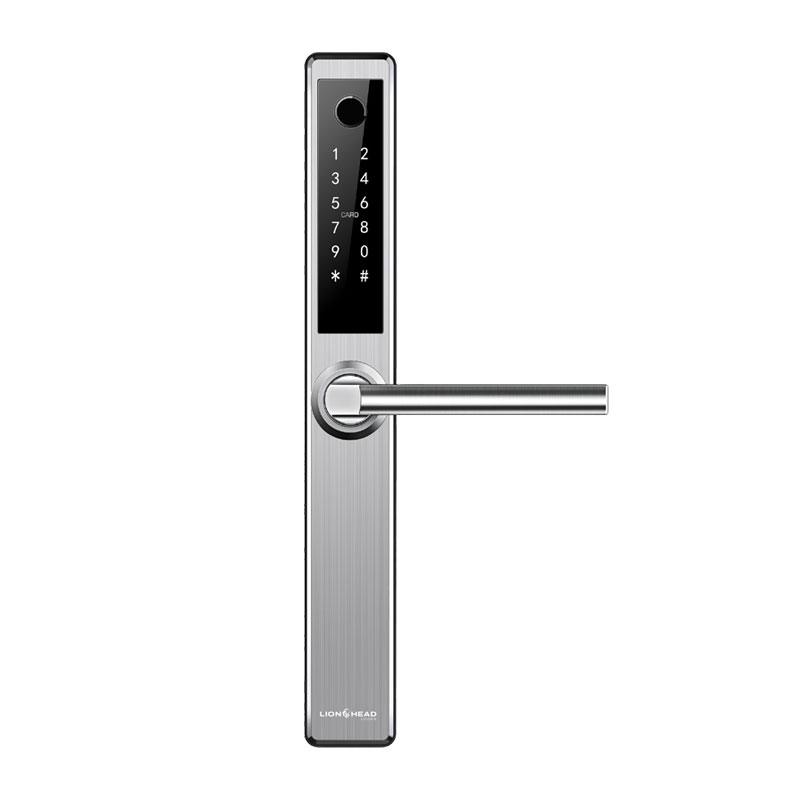

| Product Codes | LHL-PSL-B-ERSKINE (BLACK), LHL-PSL-S-ERSKINE (SILVER) |

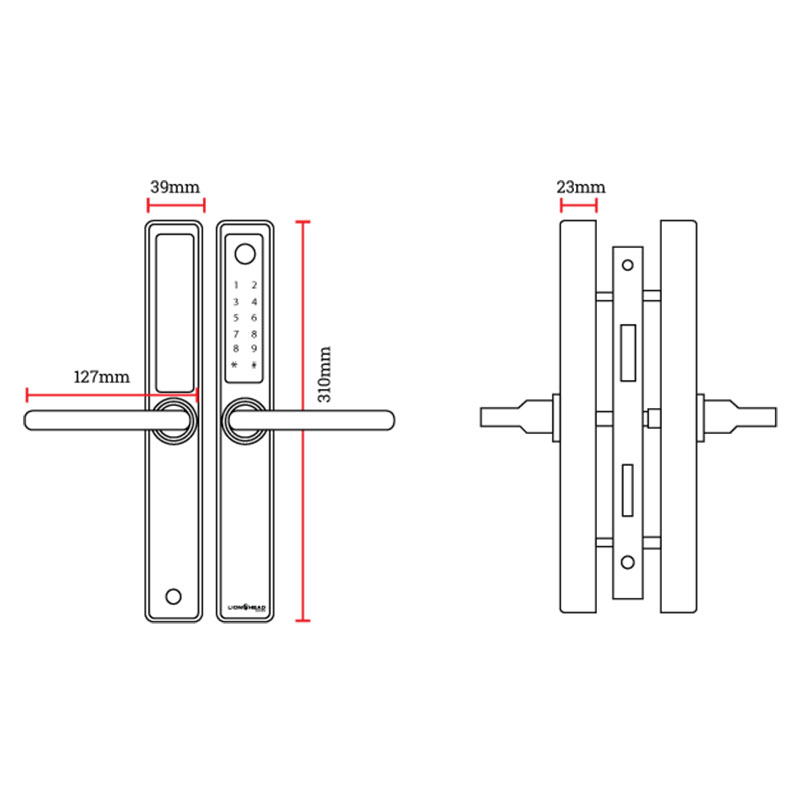

| Height (mm) | 310 |
| Width (mm) | 39 |
| Depth (mm) | 23 |

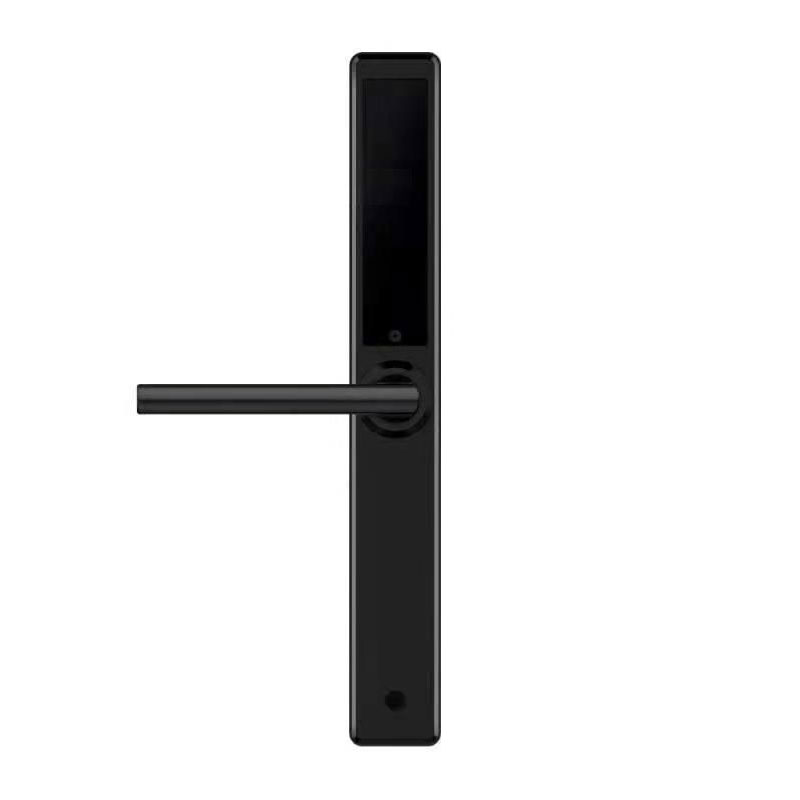

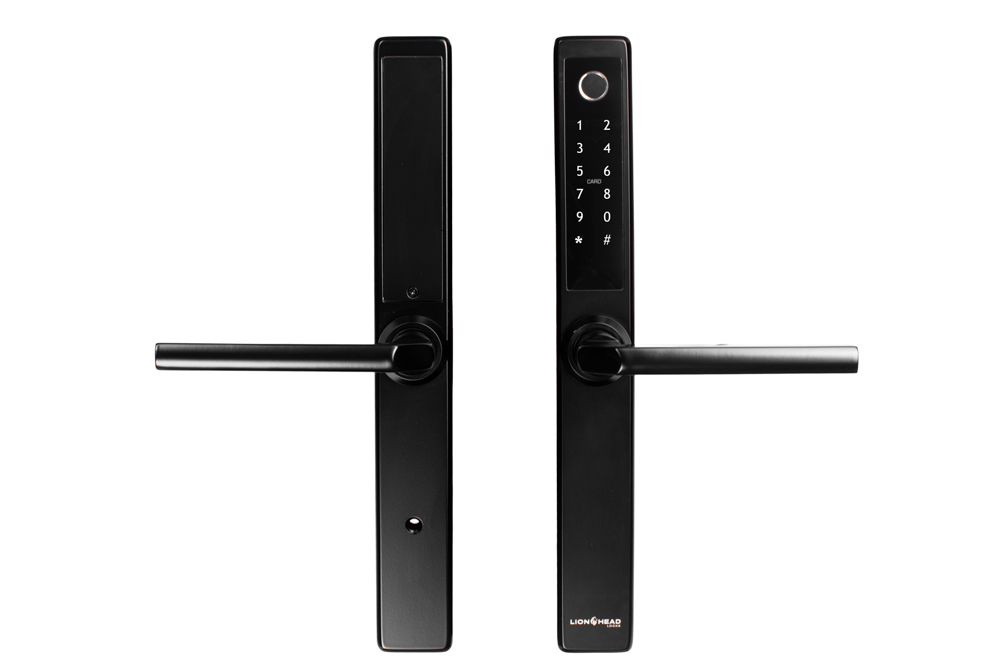

THE ERSKINE
2 Year Warranty

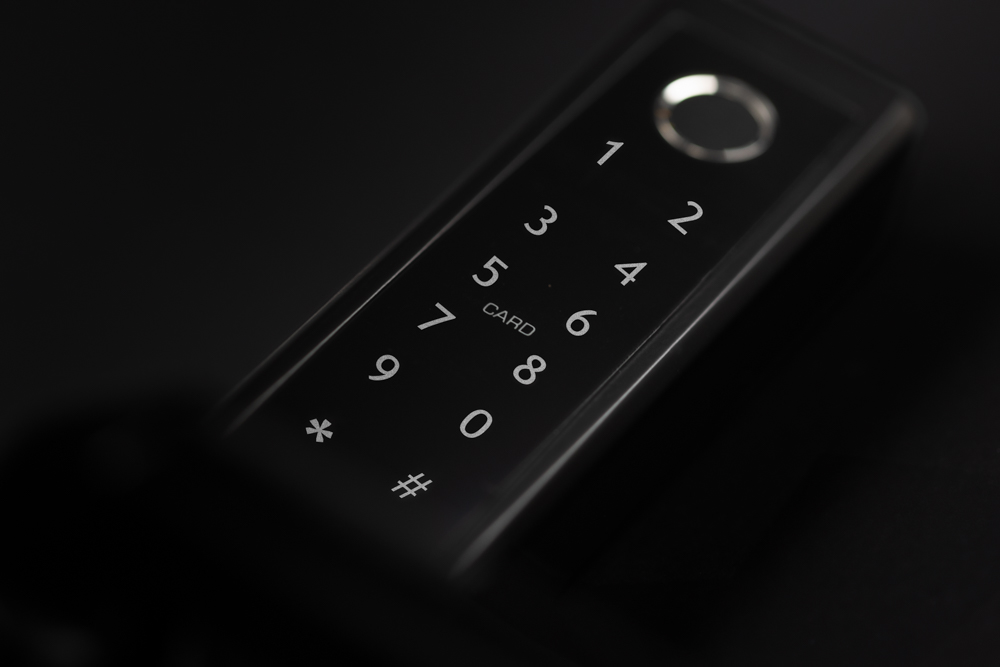

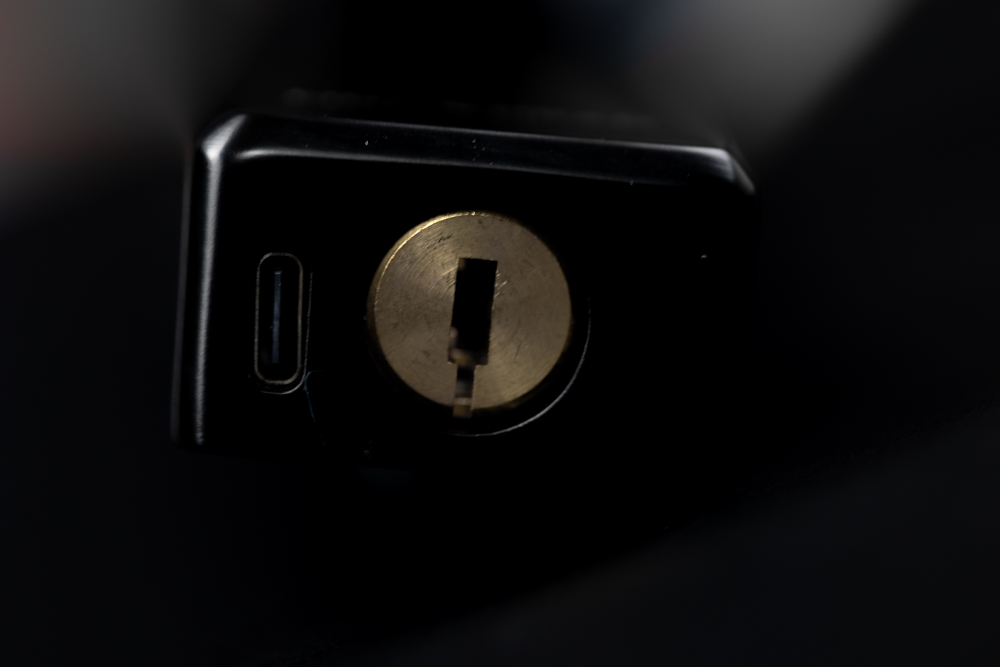

The Lion Head Locks ERSKINE is a stylish - slimline digital door lock. The ERSKINE offers multiple unlocking methods - including via the TTLock APP - Bluetooth - Fingerprint - PIN code and RFID Fob/Card. There is also the option of using a manual "track style" key in an emergency. The ERSKINE is rated IP55 (outside only). It offers reasonable protection from dust and moisture - but it is not suitable for applications fully exposed to the weather. The lock is supplied with the LHL-SW-MORTICE-35 short-backset mortice lock - and it will also work with all Lion Head Locks 85 series mortice locks and 92 series "hook" mortice locks. The ERSKINE is simple to use and is easy to program - using the TTLock APP. The TTLock APP is one of the most popular smart lock applications. It is used in over 200 countries - and it supports more than 30 languages. It is also very secure.

| Height (mm) | 310 |
|---|---|
| Width (mm) | 39 |
| Depth (mm) | 23 |
