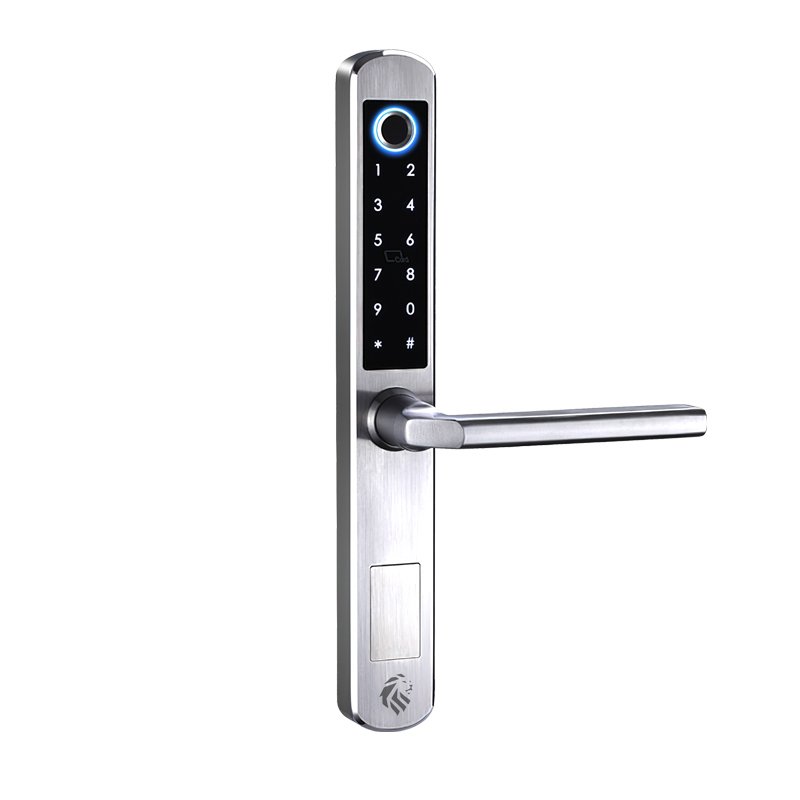

THE OXFORD

LHL-S210-B-OXFORD (BLACK)

LHL-S210-S-OXFORD (SILVER)

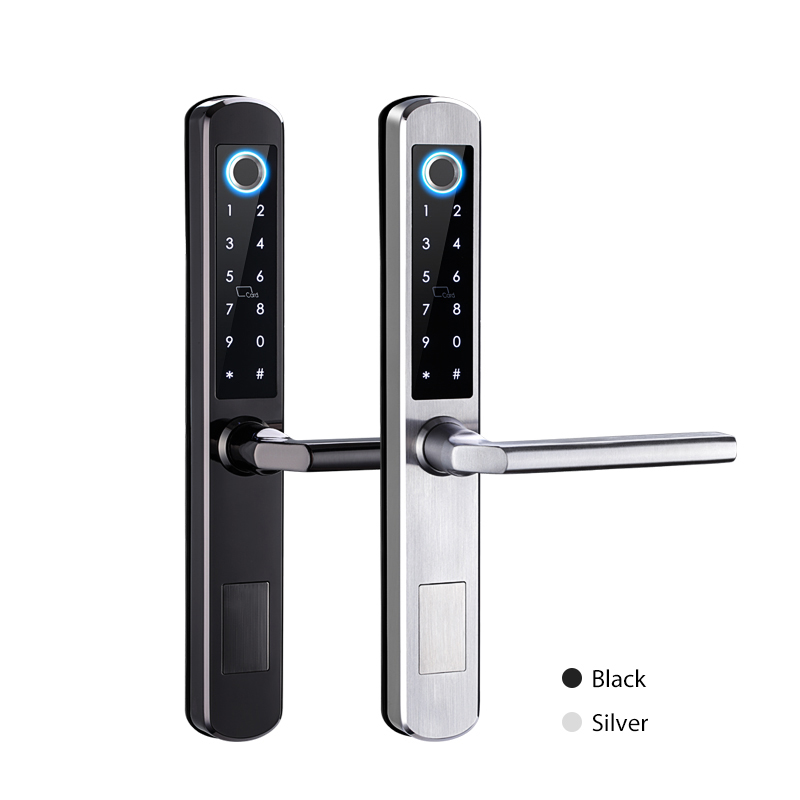

Colours

Unlocking Methods:

Mobile App

Pinpad

RFID Card

Fingerprint

Bluetooth

Key

2 YEAR WARRANTY

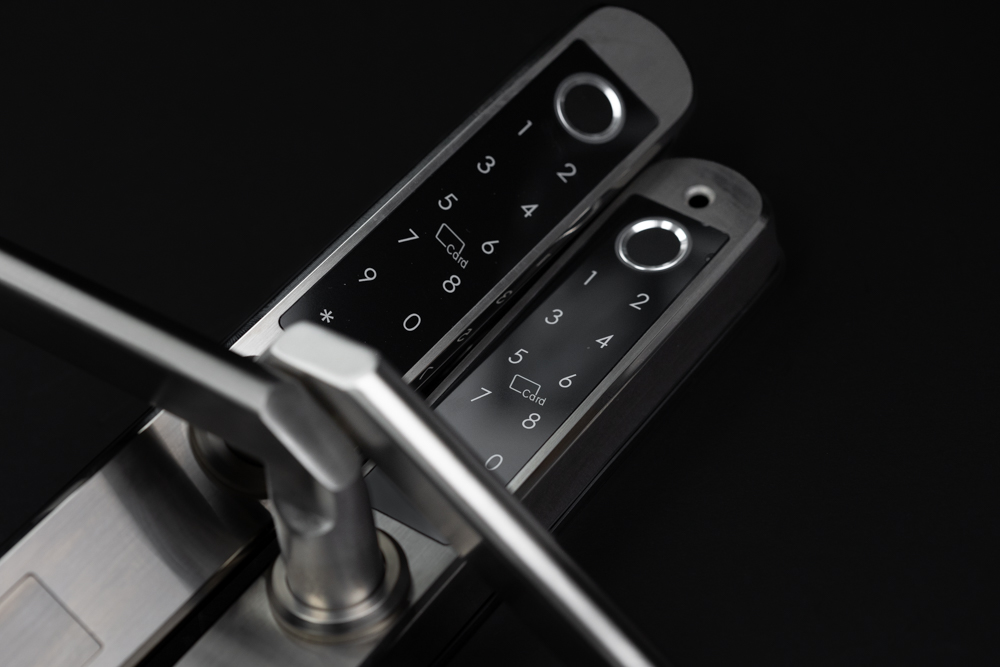

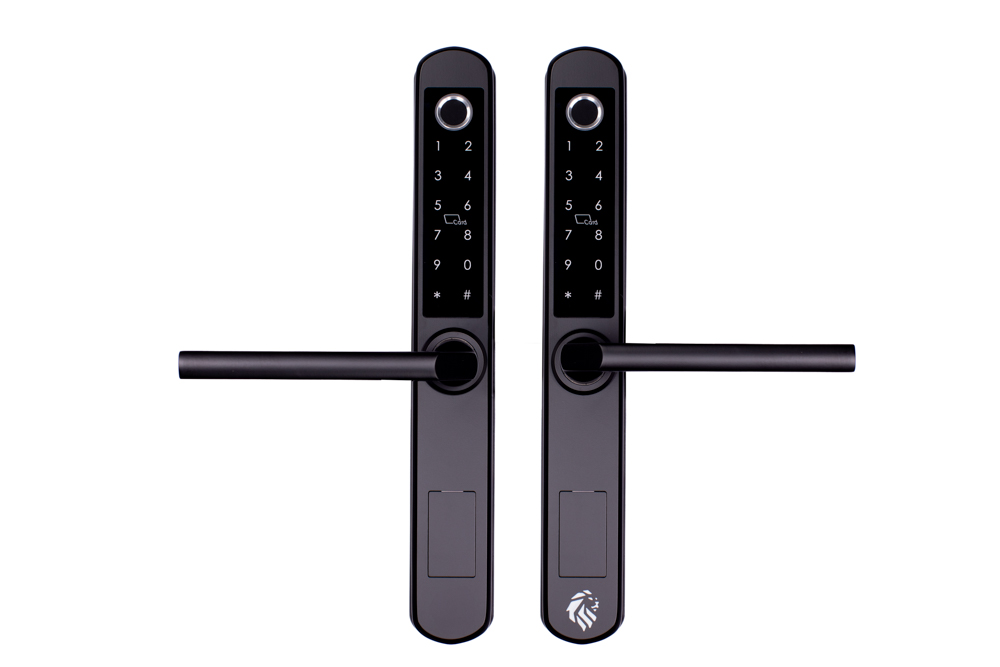

The Lion Head Locks OXFORD is a stylish, slimline digital door lock, suitable for most outdoor conditions.

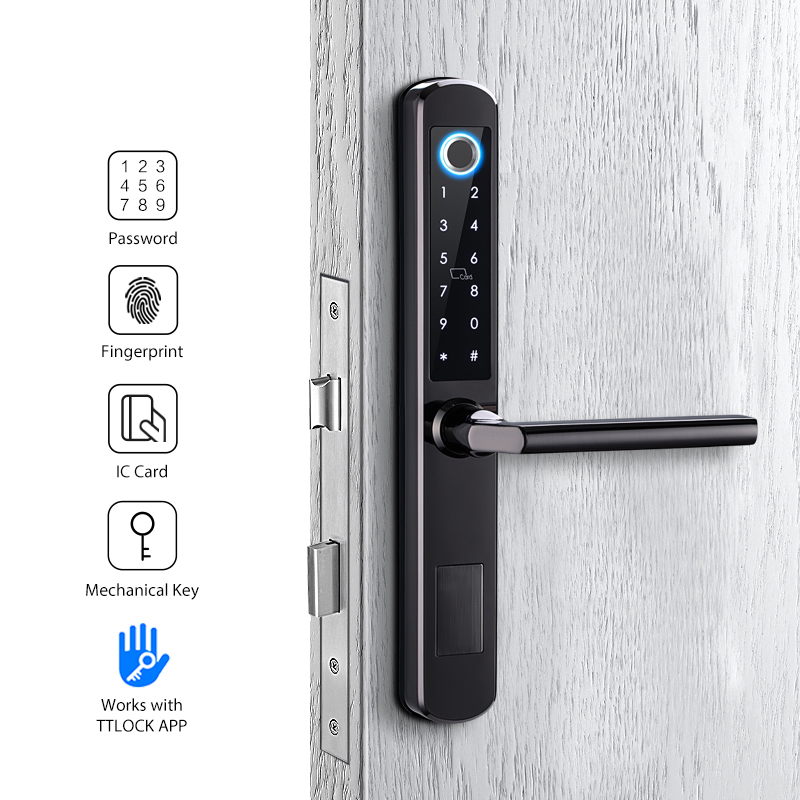

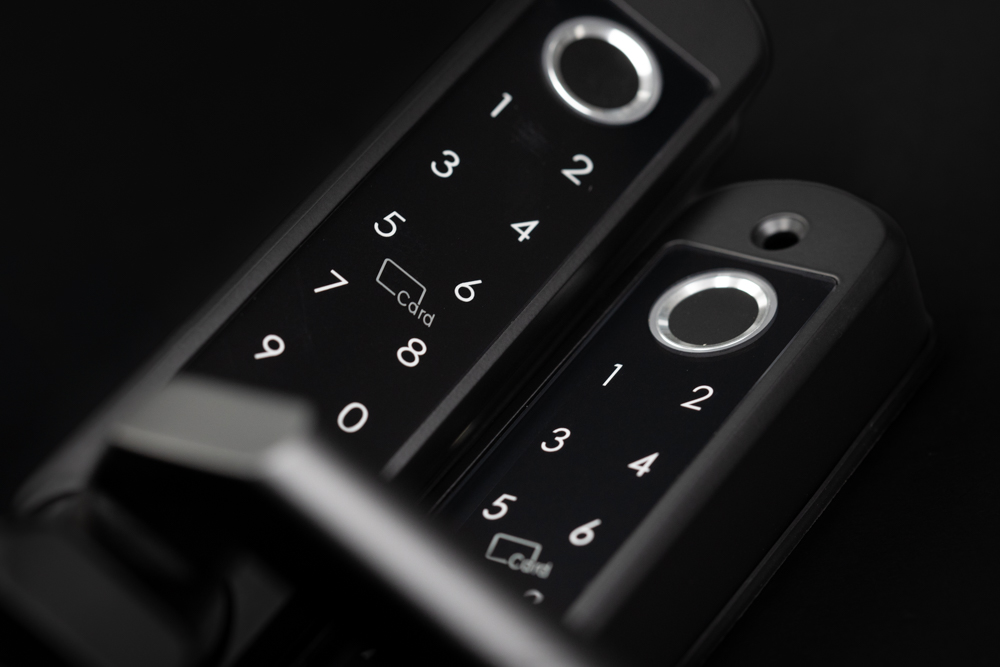

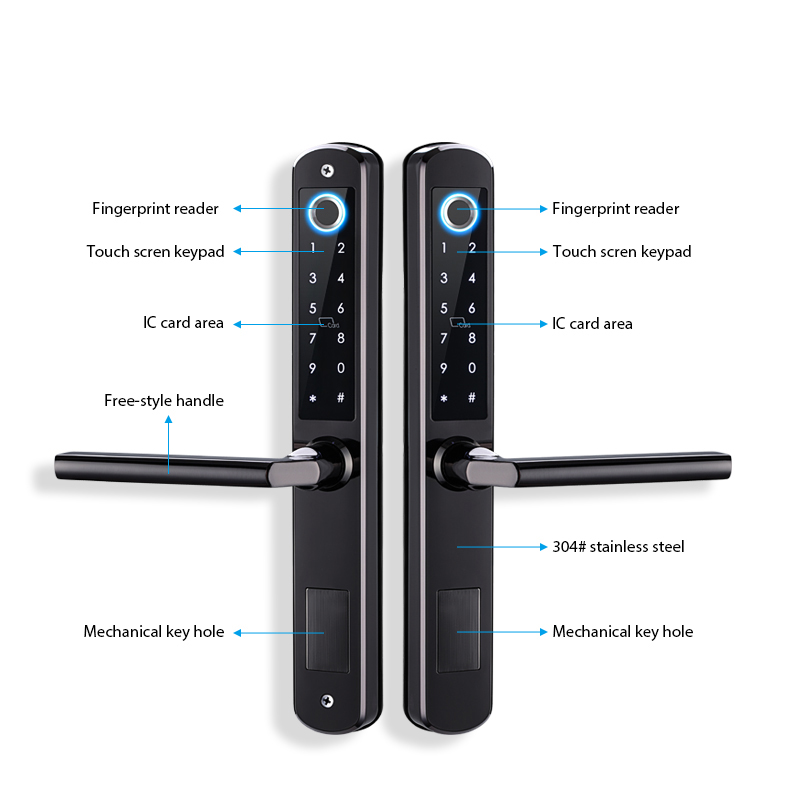

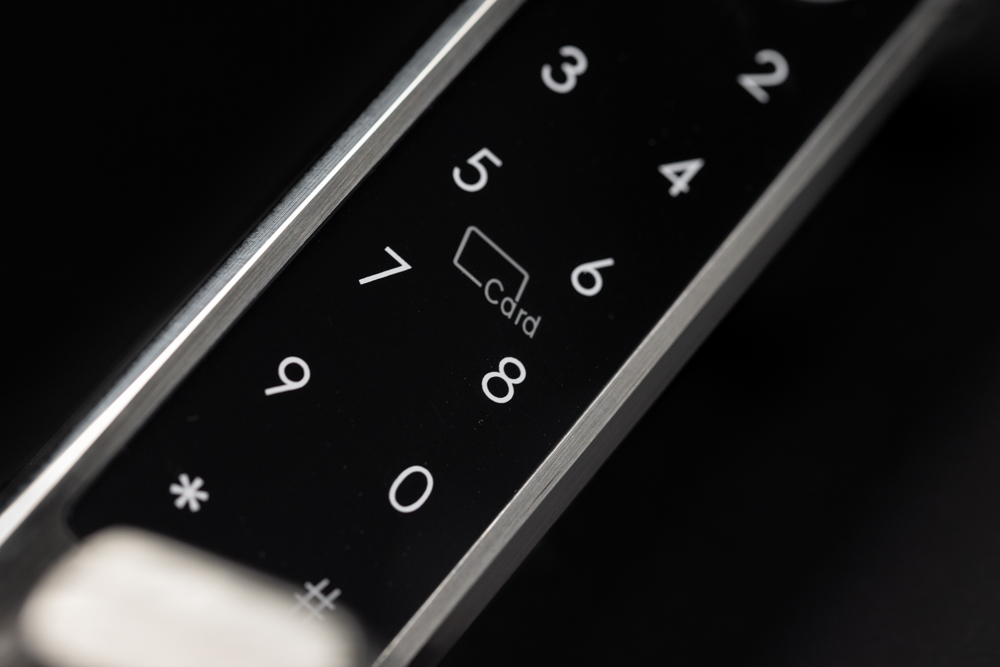

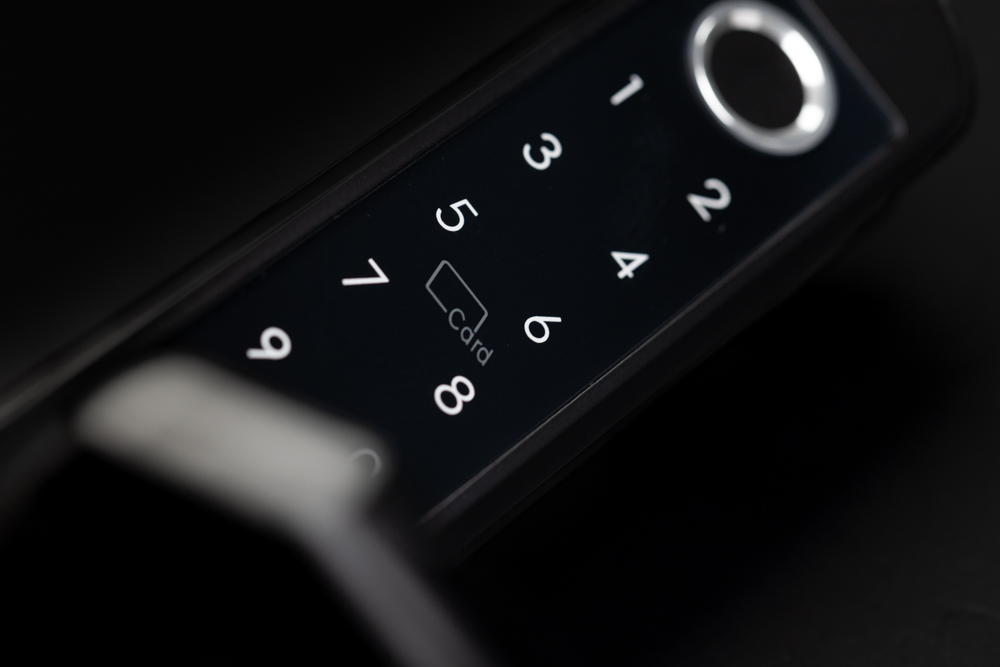

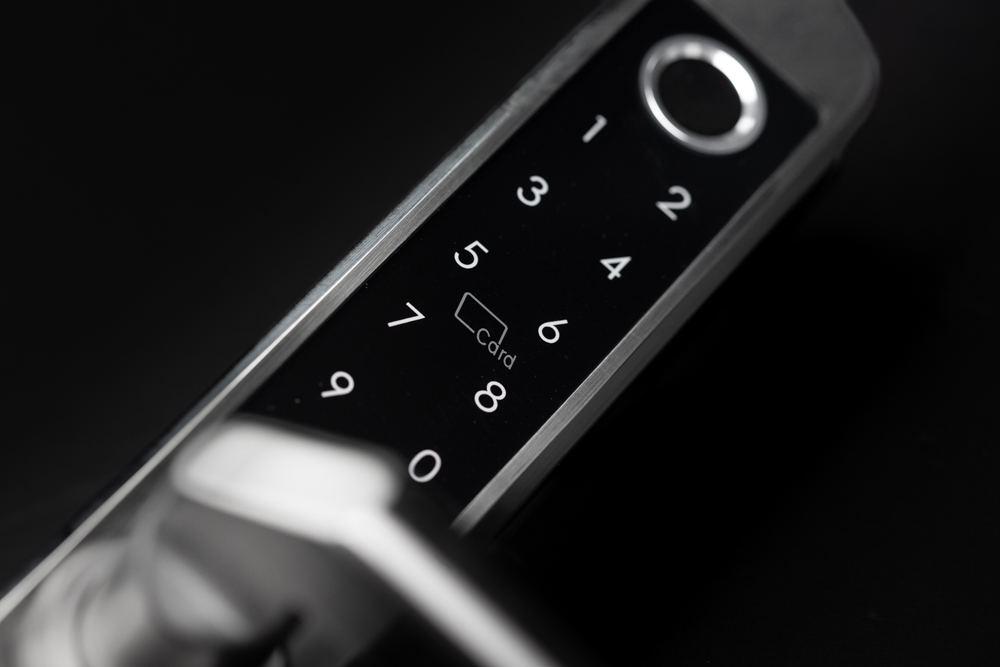

The OXFORD offers multiple unlocking methods, including via the TTLock APP, Bluetooth, Fingerprint, PIN code and RFID Fob/Card. There is also the option of using a manual “track style” key in an emergency.

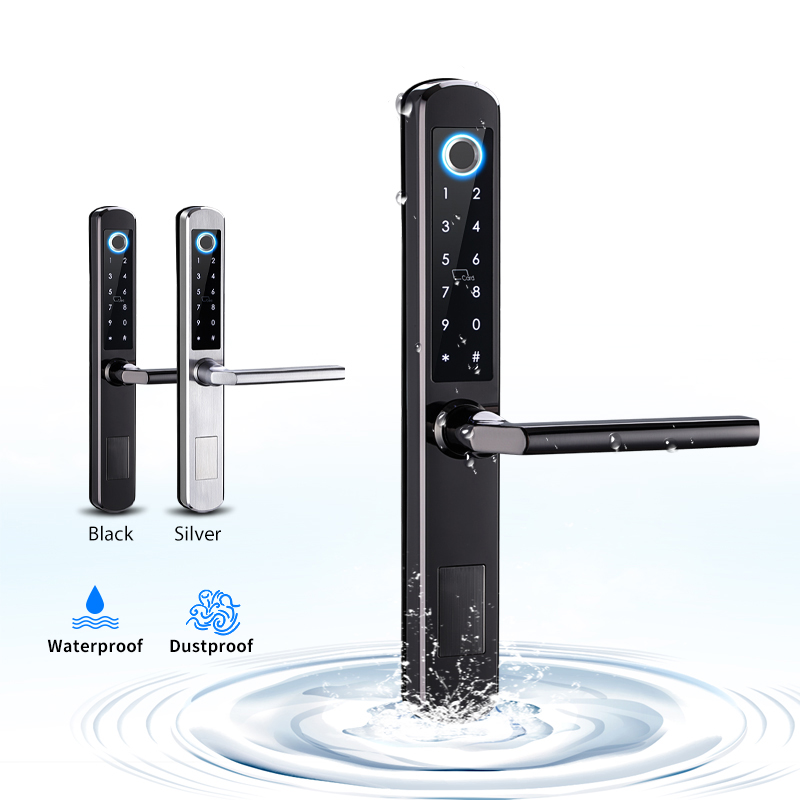

The OXFORD is rated IP65 (outside only), making it suitable for most external applications, other than those at are fully exposed to the elements.

The lock is not supplied with a lock body, however, the OXFORD will operate with all LHL 85 series swing bolt and hook mortice locks.

The OXFORD is not recommended for use with a tubular latch.

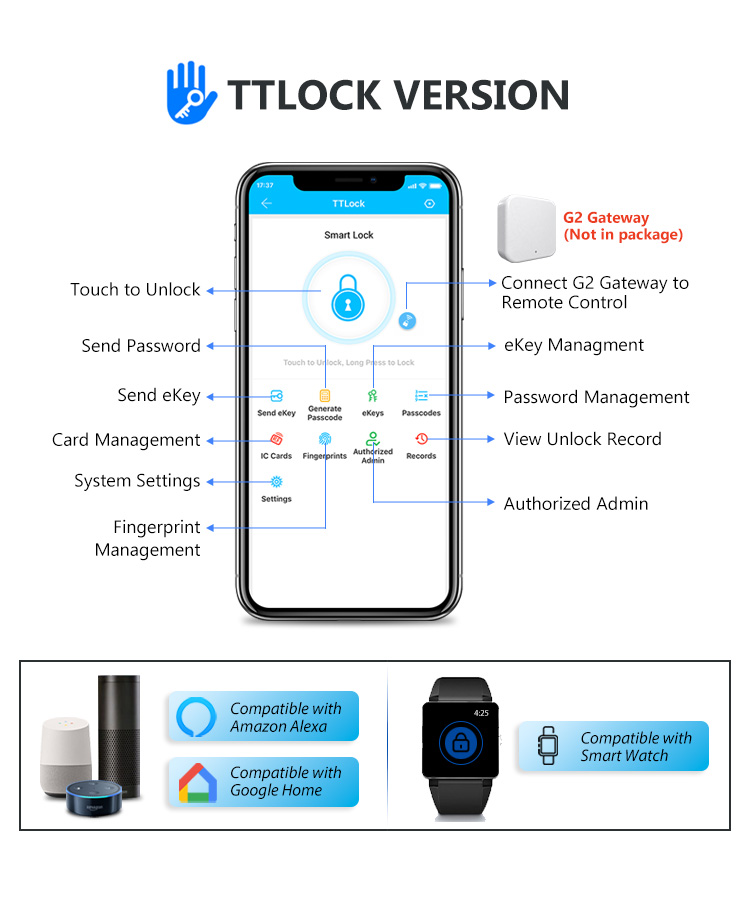

The OXFORD is simple to use and is easy to program, using the TTLock APP.

The TTLock APP is one of the most popular smart lock applications. It is used in over 200 countries, and it supports more than 30 languages. It is also very secure.

Contact your local Reseller Datasheet User Manual Talk to an Expert

Specifications

Description

Battery	4 x AAA alkaline (not supplied)
Battery Life	Up to 12 months, depending on usage

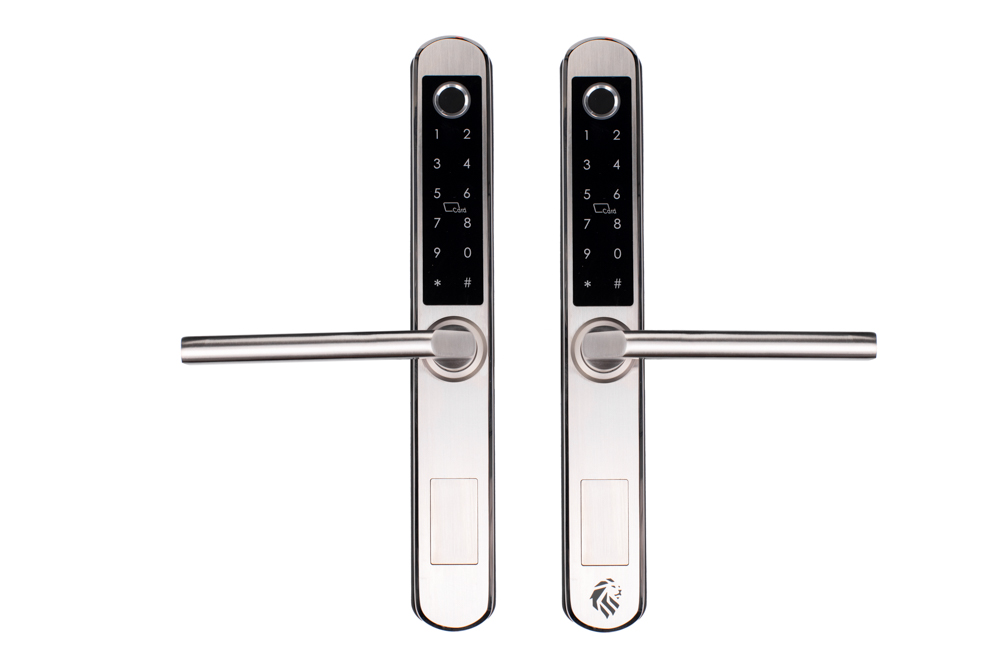

Colour	Black, Silver

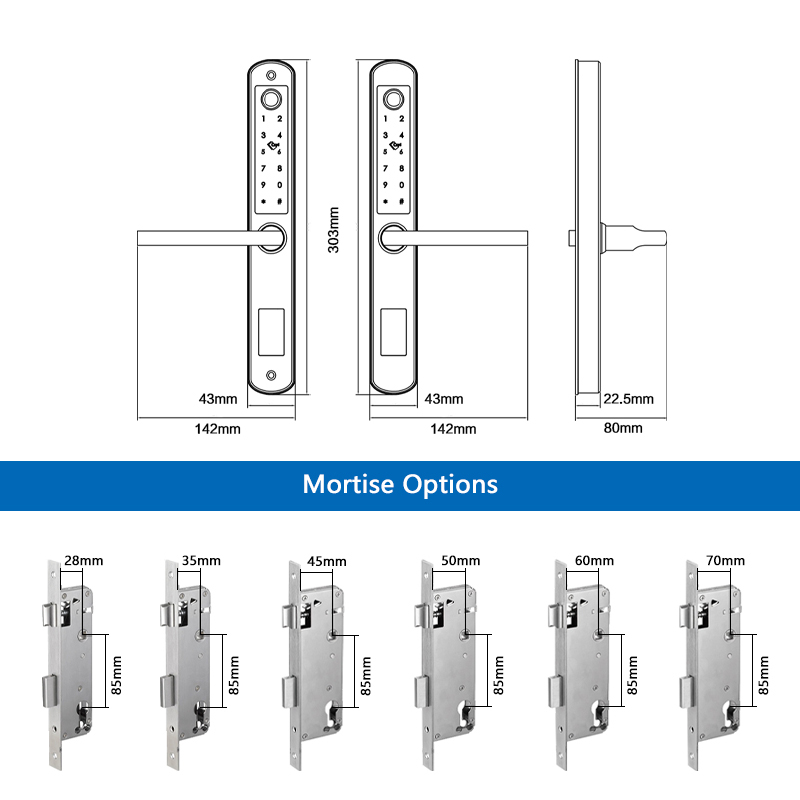

Dimensions	303mm x 43mm x 22.5mm
Door Thickness	35mm – 65mm
Fire Rated	NA
In Built Wifi	No
IP Rating	IP65 (exterior assembly only)
Key Override	Track Style Key
Material	Aluminium alloy
Projection	NA
Unlocking Methods	APP, Fingerprint, PIN code, Card, Key
User Capacity	200 Fingerprint, 150 PIN code, 200 Card
Working Humidity	20% – 95% RH
Working Temperature	-25C – 55℃
Suitable For	Homes/Residential, Apartments, Short Stay Accomodation
Lock Type	Mortice
Supplied Lock	None
Compatible Locks	LHL-HOOK-28, LHL-HOOK-35, LHL-SW-MORTICE-28, LHL-SW-MORTICE-30, LHL-SW-MORTICE-35, LHL-SW-MORTICE-45, LHL-SW-MORTICE-50, LHL-SW-MORTICE-60, LHL-SW-MORTICE-70

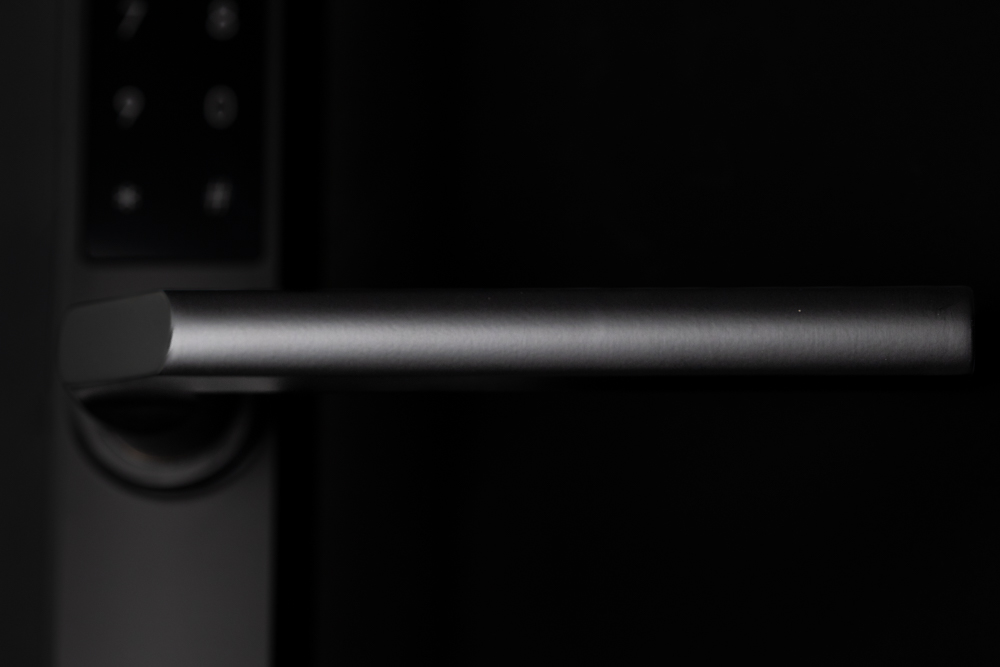

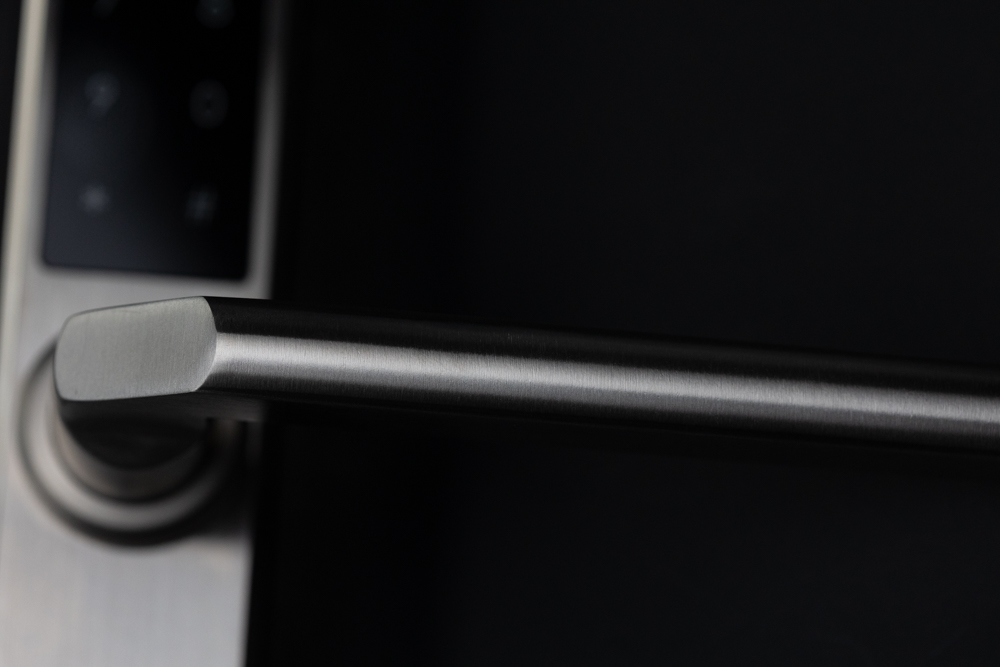

Handle Type	Lever
Product Codes	LHL-S210-B-OXFORD (BLACK), LHL-S210-S-OXFORD (SILVER)
Height (mm)	303
Width (mm)	43
Depth (mm)	22.5
