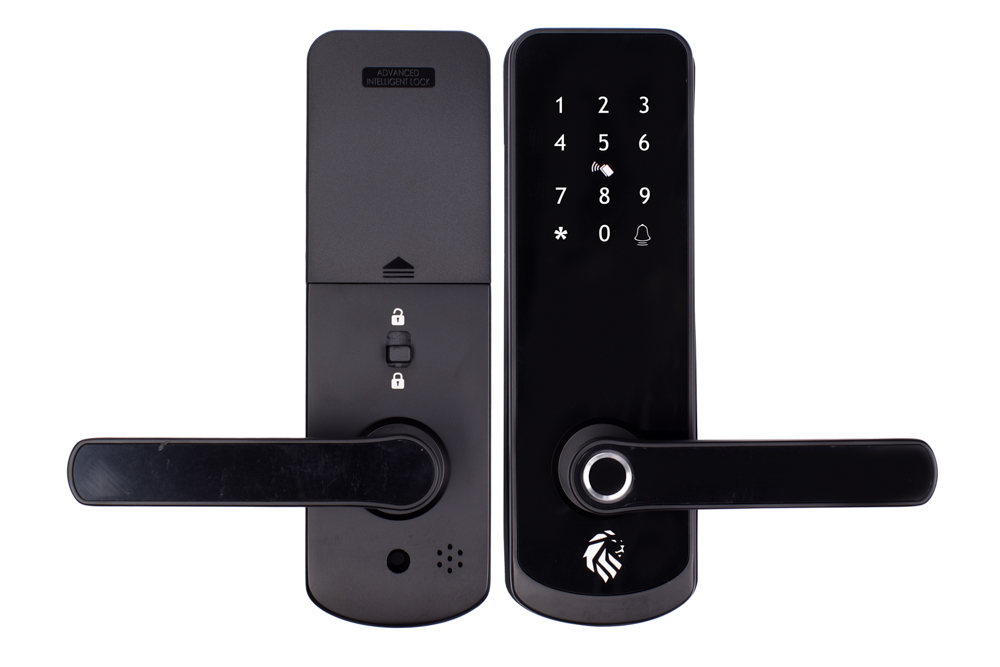

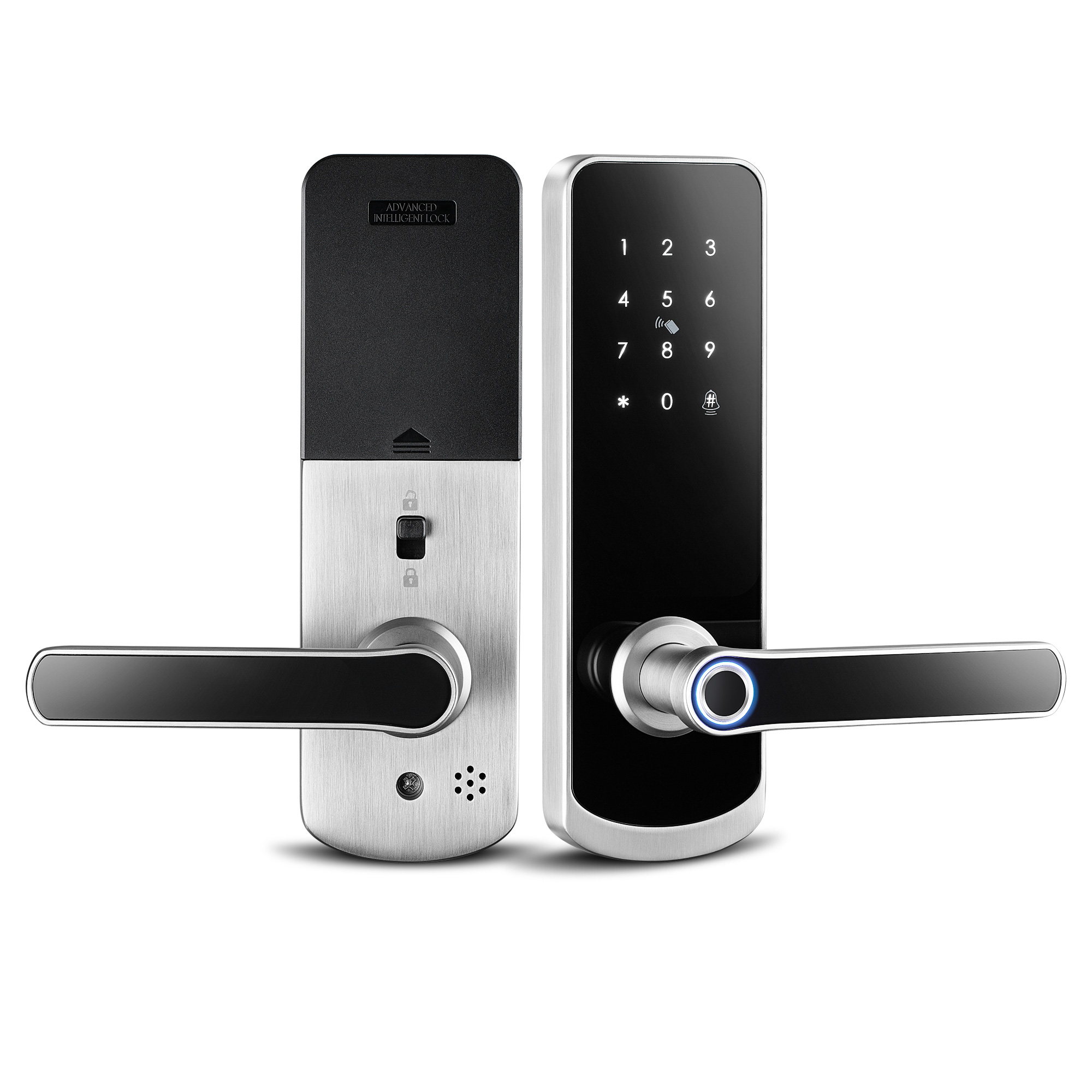

THE NICHOLSON

LHL-EX1-B-NICHOLSON (BLACK)

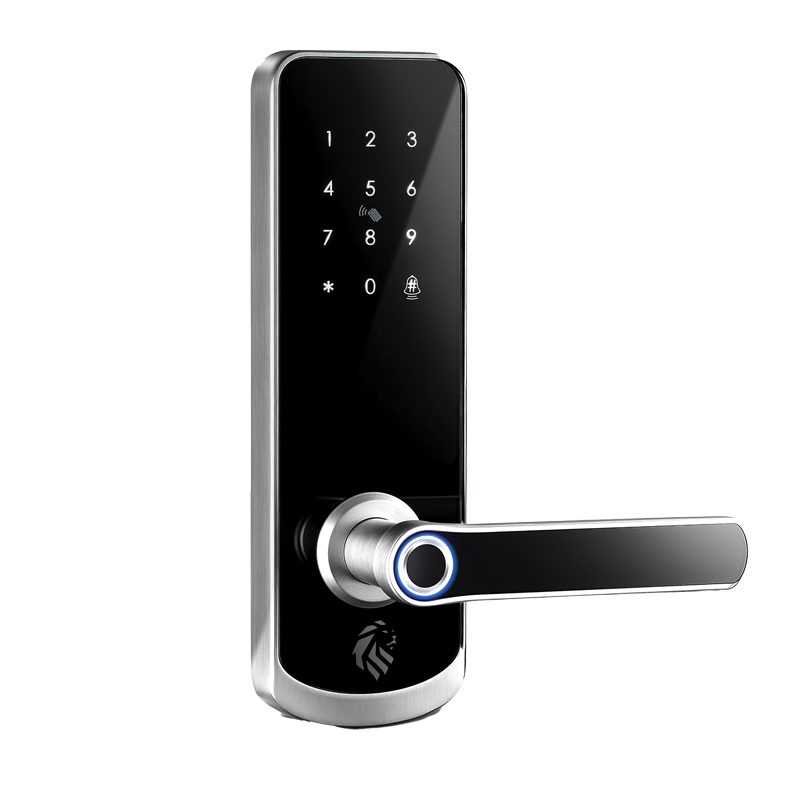

LHL-EX1-S-NICHOLSON (SILVER)
Colours
Unlocking Methods:
Mobile App

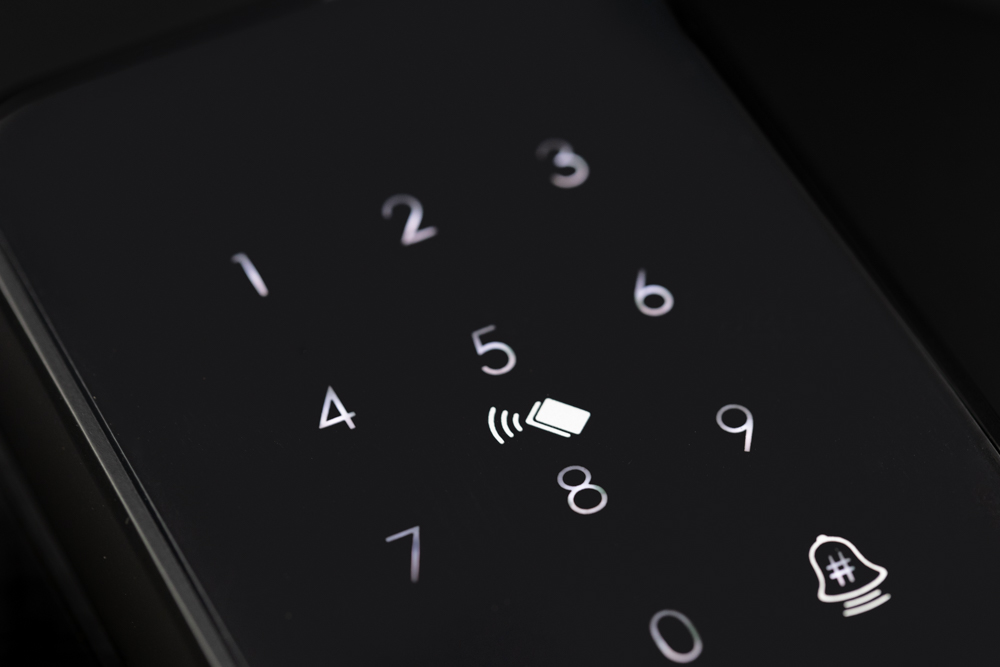

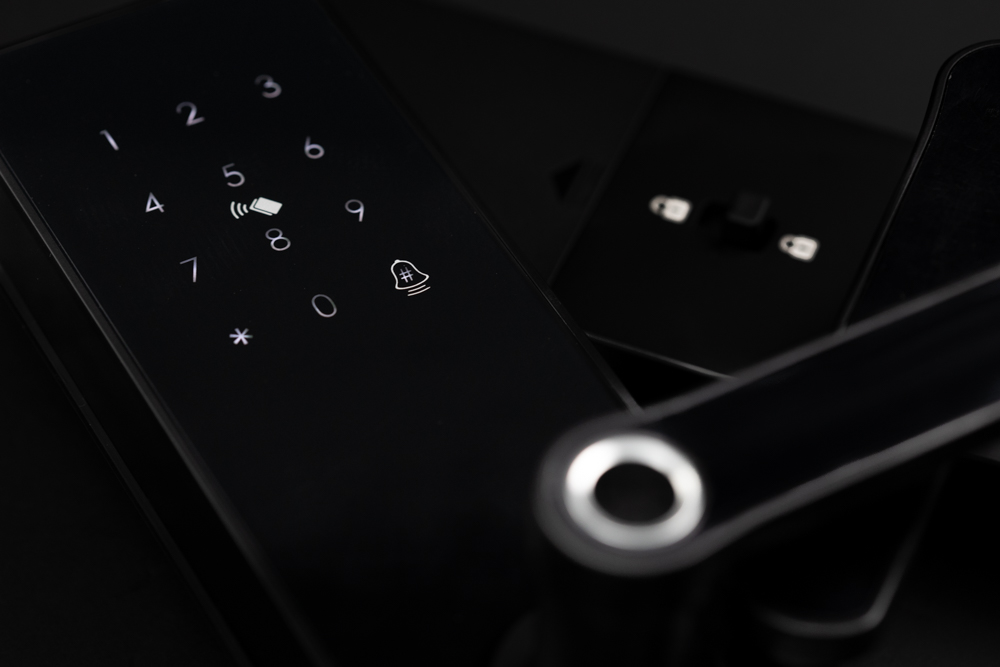

Pinpad
RFID Card
Fingerprint
Bluetooth
Key

2 Year Warranty

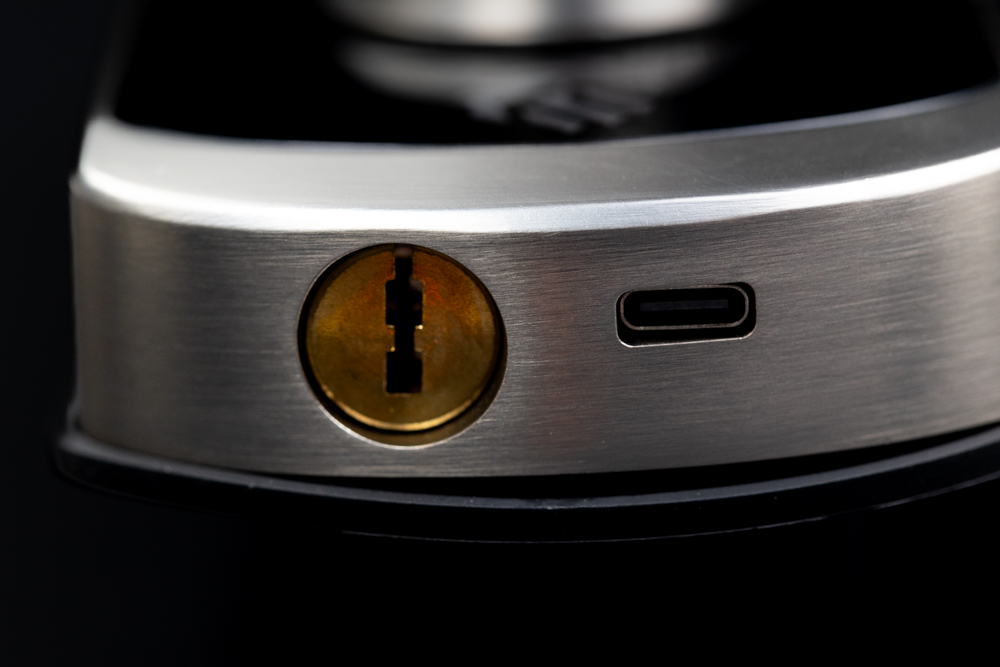

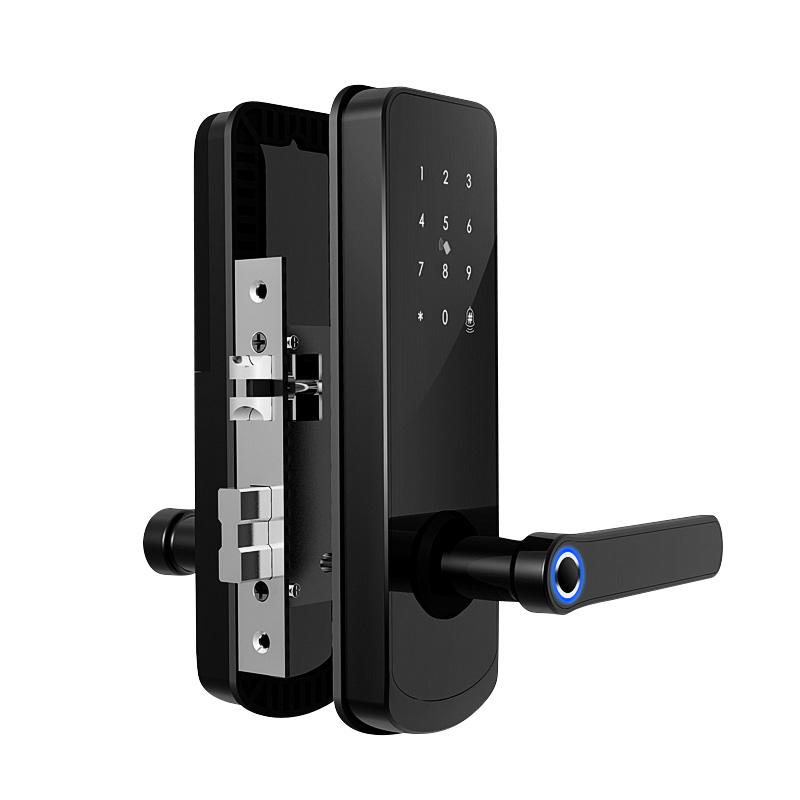

The Lion Head Locks NICHOLSON is digital door lock for both residential and commercial applications.. The NICHOLSON offers multiple unlocking methods - including via the TTLock APP - Bluetooth - Fingerprint - PIN code and RFID Fob/Card. There is also the option of using a manual "track style" key in an emergency. The NICHOLSON is rated IP55 (outside only) - making it suitable for areas with minimal exposure to the elements. It is not recommended for applications that are fully exposed to the elements. The lock is not supplied with either a latch or lock body - however - its versality allows it to be used with Lion Head Locks tubular latches - LHL 5050 & 6050 series mortice locks & LHL 85 series mortice locks. The use of a mortice lock greatly improves the security of the lock. The NICHOLSON is simple to use and is easy to program - using the TTLock APP. The TTLock APP is one of the most popular smart lock applications. It is used in over 200 countries - and it supports more than 30 languages. It is also very secure.

Product Specifications

Material: Aluminium alloy Colour: Black IP Rating: IP55 (exterior assembly only) Dimensions: 234mm x 76mm x 25mm Unlocking Methods: APP - Fingerprint - PIN code - Card - Key User Capacity: 200 Fingerprint - 150 PIN code - 200 Card Key Override: Yes (track style key) Batteries: 4 X AA alkaline (not supplied) Battery life: Up to 12 months - depending on usage USB Back Up Power: USB-C port Supplied Lock/Latch: Lock/latch not included Lock/Latch Options: LHL-fixed & adjustable tubular latches - LHL 5050 & 6050 mortice locks - and LHL 85 series mortice locks Working Temperature: -25C - 60C degrees Working Humidity: 0% - 95% RH Door Thickness: 35mm - 65mm Suitable For: Wooden and metal doors

Specifications
Description
Battery

4 x AA alkaline (not supplied)

Battery Life

Up to 12 months, depending on usage

Colour

Black, Silver

Dimensions

234mm x 76mm x 25mm

Door Thickness

35mm – 65mm

Fire Rated

NA

In Built Wifi

No

IP Rating

IP55 (exterior assembly only)

Key Override

Track Style Key

Material

Aluminium alloy

Projection

NA

Unlocking Methods

APP, Fingerprint, PIN code, Card, Key

User Capacity

200 Fingerprint, 150 PIN code, 200 Card

Working Humidity

20% – 95% RH

Working Temperature

-25C – 55℃

Suitable For

Homes/Residential, Apartments, Short Stay Accomodation

Lock Type

Tubular Latch, Mortice

Supplied Lock

None

Handle Type

Lever

Product Codes

LHL-EX1-B-NICHOLSON (BLACK), LHL-EX1-S-NICHOLSON (SILVER)

Height (mm)

234

Width (mm)

76

Depth (mm)

25

THE NICHOLSON measurements
Height (mm)234
Width (mm)76
Depth (mm)25

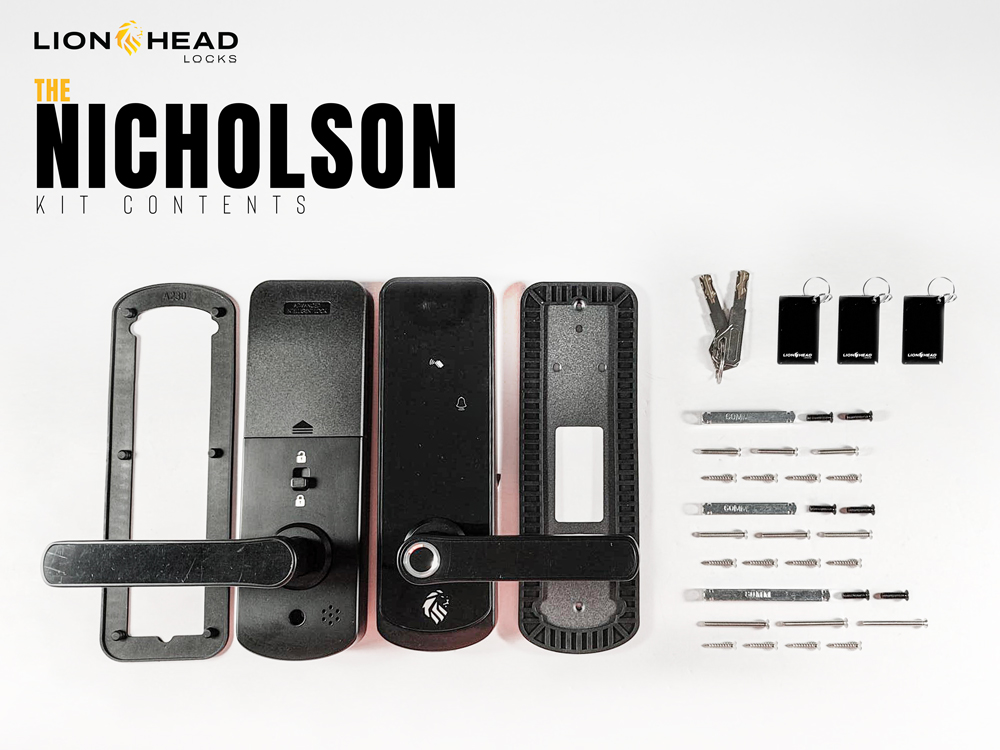

THE NICHOLSON in the box
